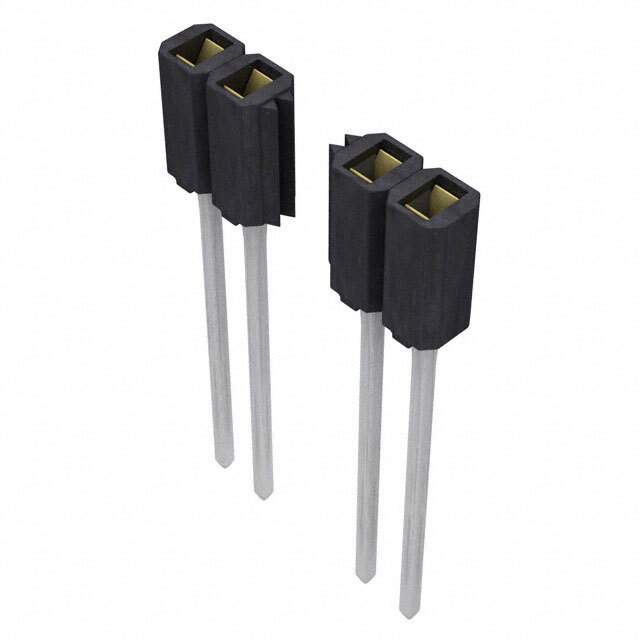

SSA-120-W-G

Name: SSA-120-W-G
Brand: Samtec Inc.
SKU: 1292074
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SSA-120-W-G
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SSA-120-W-G Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	SSA
Package	Bulk
Connector Type	Receptacle, Breakaway
Contact Type	Female Socket
Style	Board to Board
Number of Positions	20
Number of Positions Loaded	All
Pitch - Mating	0.100" (2.54mm)
Number of Rows	1
Mounting Type	Through Hole
Termination	Wire Wrap
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Insulation Color	Black
Insulation Height	0.230" (5.85mm)
Contact Length - Post	0.656" (16.66mm)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Voltage Rating	1000V
Insulation Material	Polyethylene Terephthalate (PET), Polyester
Contact Material	Phosphor Bronze
Base Product Number	SSA-120
Other Names	SAM1123-20
Standard Package	1
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1292074-SSA-120-W-G
Ultra Librarian 3D Model	Ultra Librarian SSA-120-W-G CAD Model

Alternative Products

Description

The SSA series rectangular connector is a receptacle type connector with 20 positions and 1 row.

Fastening type: push-pull
Termination: wire wrap
Contact material: phosphor bronze
Contact type: female socket
Insulation material: polyethylene terephthalate (PET), polyester
Insulation height: 0.230 inches
Pitch-mating: 0.100 inches (2.54mm)
Contact finish-mating: gold with a thickness of 10.0µin (0.25µm)
Operating temperature range: -55°C to 125°C
Ideal for: board-to-board applications in the electronics industry
