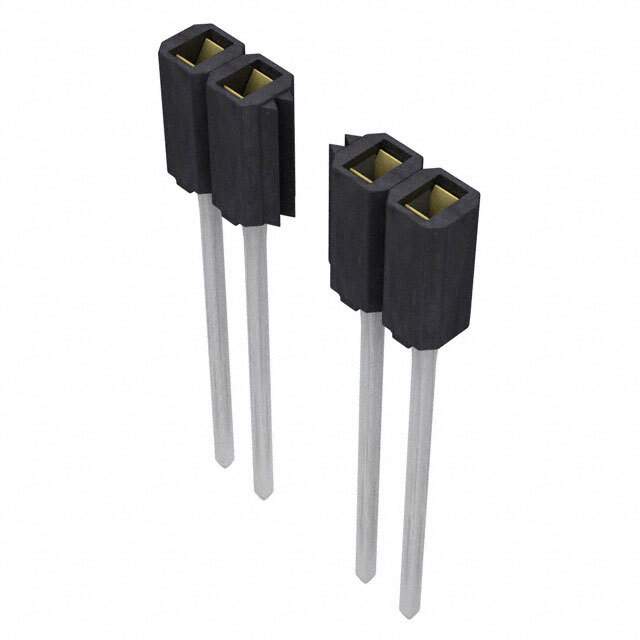

This rectangular connector is a part of the SSA series and has 17 positions.

• Connector type: receptacle, breakaway
• Contact type: female socket
• Positions loaded: all positions
• Termination type: wire wrap
• Fastening type: push-pull
• Contact material: phosphor bronze
• Voltage rating: 1000V
• Insulation material: polyethylene terephthalate (PET), polyester
• Style: board to board
• Pitch-mating: 0.100" (2.54mm)
• Contact finish-mating: gold with a thickness of 10.0µin (0.25µm)
• Mounting type: through-hole
• Contact length-post: 0.656" (16.66mm)
• Insulation height: 0.230" (5.85mm)
• Insulation color: black
• Operating temperature range: -55°C ~ 125°C
• Flammability rating: UL94 V-0
• Package: bulk
