Same model may have multiple batches, images only for reference.

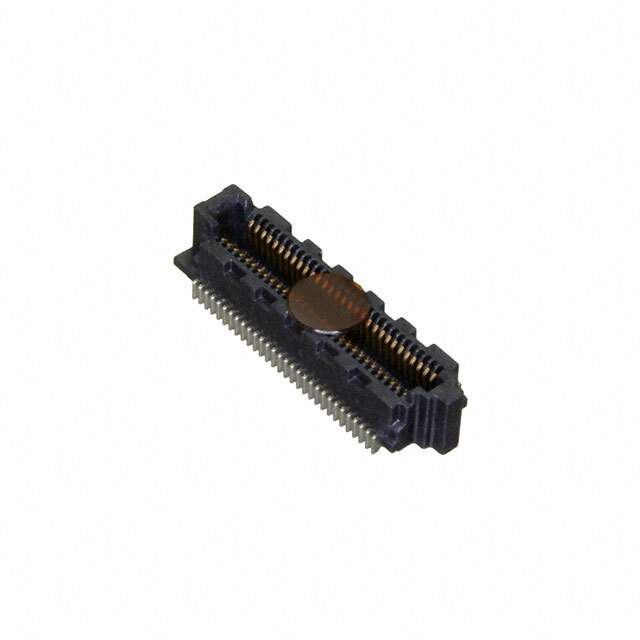

SS4-30-3.00-L-D-K-TR Real Image
Same model may have multiple batches, images only for reference.

SS4-30-3.00-L-D-K-TR

Part No SS4-30-3.00-L-D-K-TR
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SS4-30-3.00-L-D-K-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Samtec Inc.
Series Razor Beam™ SS4
Package Tape & Reel
Connector Type Socket, Outer Shroud Contacts
Number of Positions 60
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting SMD (SMT)
Features Pick and Place
Contact Finish Gold
Contact Finish Thickness 10.0µin (0.25µm)
Mated Stacking Heights 4mm, 4.5mm, 5.5mm
Height Above Board 0.112" (2.85mm)
Base Product Number SS4-30
Other Names SS4-30-3.00-L-D-K-TR,SS4-30-3.00-L-D-K-FR,SAM13257DKR,SAM13257CT,SAM13257TR
Standard Package 1,150
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1293972-SS4-30-3.00-L-D-K-TR
Ultra Librarian 3D Model Ultra Librarian SS4-30-3.00-L-D-K-TR CAD Model

Description

The Razor Beam™ SS4 connector is a 60-position, 2-row socket, outer shroud contact type rectangular connector that is used in board-to-board applications.

  • Positions: 60
  • Rows: 2
  • Contact Type: Socket, outer shroud contact
  • Connector Type: Rectangular
  • Application: Board-to-board
  • Pitch: 0.016 inches (0.40mm)
  • Height Above Board: 0.112 inches (2.85mm)
  • Contact Finish: Gold
  • Contact Finish Thickness: 10.0μin (0.25μm)
  • Mounting Technology: Surface-mount technology
  • Packaging: Tape and reel
  • Mated Stacking Height: 4mm, 4.5mm, and 5.5mm
