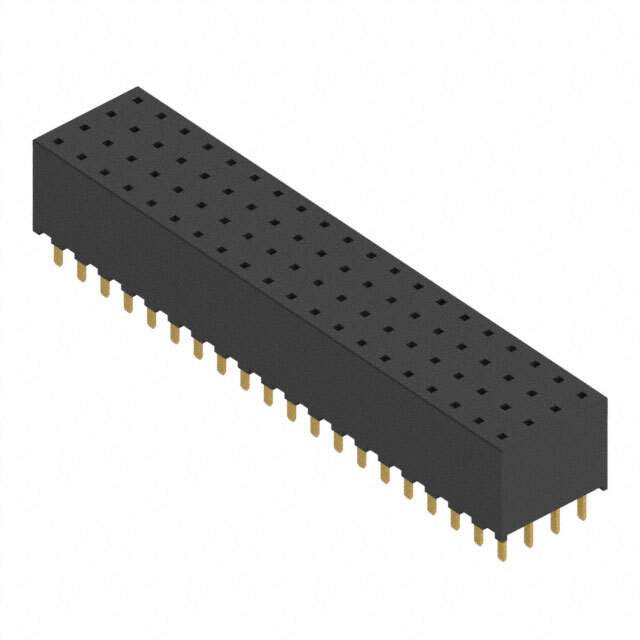

Same model may have multiple batches, images only for reference.

SQW-120-01-L-Q

Name: SQW-120-01-L-Q
Brand: Samtec Inc.
SKU: 1292257
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SQW-120-01-L-Q
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SQW-120-01-L-Q Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	SQW
Connector Type	Receptacle
Contact Type	Forked
Style	Board to Board or Cable
Number of Positions	80
Number of Positions Loaded	All
Pitch - Mating	0.079" (2.00mm)
Number of Rows	4
Row Spacing - Mating	0.079" (2.00mm)
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Insulation Color	Black
Insulation Height	0.250" (6.35mm)
Contact Length - Post	0.090" (2.29mm)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Current Rating (Amps)	3.8A per Contact
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Phosphor Bronze
Base Product Number	SQW-120
Other Names	SQW-120-01-L-Q,SAM15804
Standard Package	14
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1292257-SQW-120-01-L-Q
Ultra Librarian 3D Model	Ultra Librarian SQW-120-01-L-Q CAD Model

Alternative Products

Description

The SQW series rectangular connector is a perfect solution for your header and receptacle needs.

Positions: 80
Contacts: forked
Rows: four
Pitch: 0.079" (2.00mm)
Contact Finish for Mating: gold with a thickness of 10.0µin (0.25µm)
Contact Finish for Post: tin
Insulation Material: liquid crystal polymer (LCP) with a black color
Connector Type: receptacle
Termination: solder
Fastening Type: push-pull
Contact Material: phosphor bronze
Insulation Height: 0.250" (6.35mm)
Contact Shape: square
Operating Temperature: -55°C ~ 125°C
Manufacturer: Samtec Inc.
