Same model may have multiple batches, images only for reference.

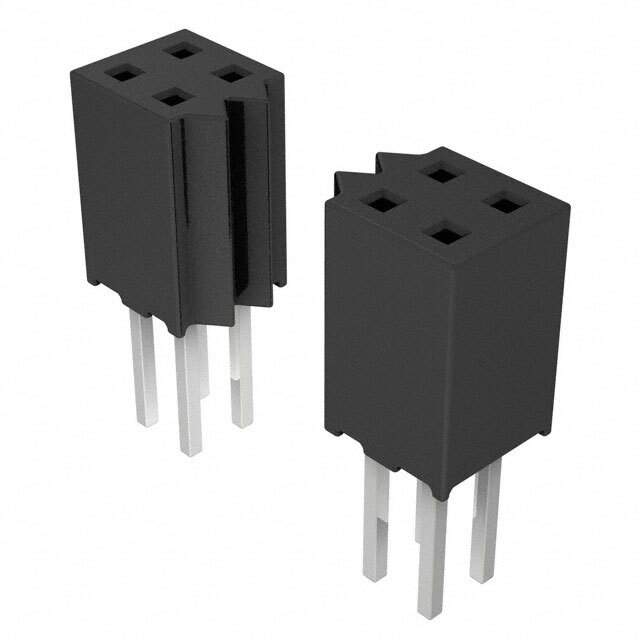

SQT-108-03-L-D Real Image
Same model may have multiple batches, images only for reference.

SQT-108-03-L-D

Part No SQT-108-03-L-D
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SQT-108-03-L-D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Samtec Inc.
Series SQT
Connector Type Receptacle
Contact Type Forked
Style Board to Board or Cable
Number of Positions 16
Number of Positions Loaded All
Pitch - Mating 0.079" (2.00mm)
Number of Rows 2
Row Spacing - Mating 0.079" (2.00mm)
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 10.0µin (0.25µm)
Insulation Color Black
Insulation Height 0.250" (6.35mm)
Contact Length - Post 0.208" (5.28mm)
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Current Rating (Amps) 5.1A per Contact
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Contact Material Phosphor Bronze
Base Product Number SQT-108
Other Names SAM9987
Standard Package 34
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1292373-SQT-108-03-L-D
Ultra Librarian 3D Model Ultra Librarian SQT-108-03-L-D CAD Model

Description

The SQT-108-03-L-D rectangular connector from Samtec Inc. is a high-quality product that is designed to provide reliable and efficient performance.

  • Positions: 16
  • Loaded: All
  • Connector Type: Receptacle
  • Contact Type: Forked
  • Termination: Soldered
  • Fastening Type: Push-pull
  • Contact Material: Phosphor Bronze
  • Insulation Material: Liquid Crystal Polymer (LCP)
  • Flammability Rating: UL94 V-0
  • Pitch-Mating: 0.079 inches (2.00mm)
  • Contact Finish: Gold
  • Current Rating: 5.1A per contact
  • Temperature Range: -55 degrees Celsius to 125 degrees Celsius
