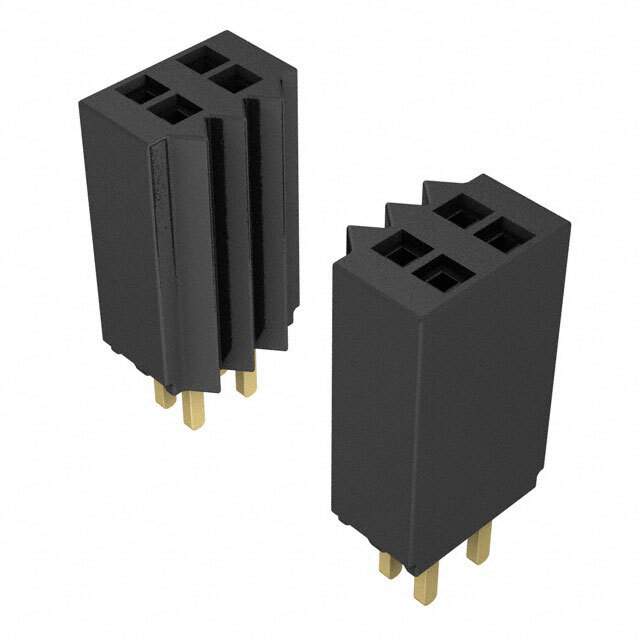

SMS-106-01-G-D

Name: SMS-106-01-G-D
Brand: Samtec Inc.
SKU: 1292501
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SMS-106-01-G-D
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SMS-106-01-G-D Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	SMS
Package	Bulk
Connector Type	Receptacle
Contact Type	Forked
Style	Board to Board
Number of Positions	12
Number of Positions Loaded	All
Pitch - Mating	0.050" (1.27mm)
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Insulation Color	Black
Insulation Height	0.335" (8.51mm)
Contact Length - Post	0.100" (2.54mm)
Temperature Range - Operating	-55°C ~ 125°C
Contact Finish - Post	Gold
Current Rating (Amps)	5A per Contact
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Phosphor Bronze
Contact Finish Thickness - Post	3.00µin (0.076µm)
Base Product Number	SMS-106
Standard Package	1
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1292501-SMS-106-01-G-D
Ultra Librarian 3D Model	Ultra Librarian SMS-106-01-G-D CAD Model

Alternative Products

Description

The SMS series receptacle connector is a rectangular connector that is widely used in interconnect applications.

Connector Type: Receptacle
Contact Type: Forked
Positions Loaded: All
Positions: 12
Rows: Two
Termination: Solder
Fastening Type: Push-Pull
Contact Material: Phosphor Bronze
Contact Finish Mating: Gold
Contact Finish Thickness Mating: 10.0µin (0.25µm)
Contact Finish Post: Gold
Contact Finish Thickness Post: 3.00µin (0.076µm)
Insulation Material: Liquid Crystal Polymer (LCP)
Insulation Color: Black
Mounting Type: Through-Hole
Row Spacing Mating: 0.100" (2.54mm)
Contact Length Post: 0.100" (2.54mm)
Insulation Height: 0.335" (8.51mm)
Style: Board-to-Board
Temperature Range: -55°C ~ 125°C
Current Rating: 5A per contact
