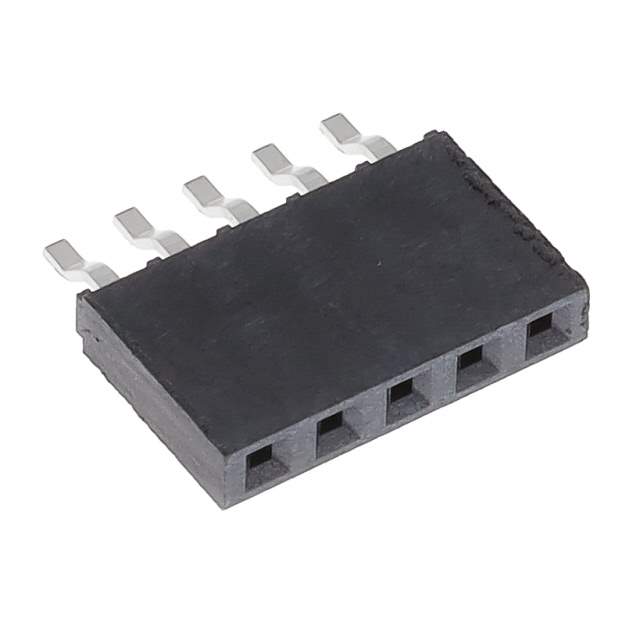

SMH-105-02-T-S

Name: SMH-105-02-T-S
Brand: Samtec Inc.
SKU: 1292509
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SMH-105-02-T-S
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SMH-105-02-T-S Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	SMH
Package	Tube
Connector Type	Receptacle
Contact Type	Forked
Style	Board to Board
Number of Positions	5
Number of Positions Loaded	All
Pitch - Mating	0.100" (2.54mm)
Number of Rows	1
Mounting Type	Surface Mount, Right Angle
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Tin
Insulation Color	Black
Insulation Height	0.095" (2.41mm)
Temperature Range - Operating	-55°C ~ 105°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Phosphor Bronze
Base Product Number	SMH-105
Standard Package	43
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1292509-SMH-105-02-T-S
Ultra Librarian 3D Model	Ultra Librarian SMH-105-02-T-S CAD Model

Alternative Products

Description

The SMH-105-02-T-S is a Samtec Inc. manufactured rectangular connector used for board-to-board connections.

Manufacturer: Samtec Inc.
Product Name: SMH-105-02-T-S
Connector Type: Rectangular connector
Application: Board-to-board connections
Receptacle Type: Receptacle
Contact Type: Forked
Pitch: 0.100" (2.54mm)
Row Spacing: 0
Contact Finish (Mating and Post): Tin
Insulation Material: Liquid crystal polymer (LCP)
Material Flammability Rating: UL94 V-0
Operating Temperature Range: -55°C to 105°C
