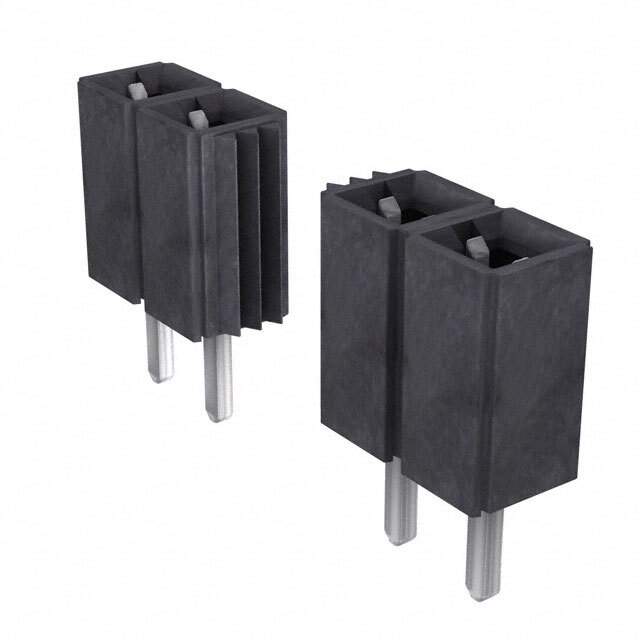

Same model may have multiple batches, images only for reference.

SLW-109-01-T-S

Name: SLW-109-01-T-S
Brand: Samtec Inc.
SKU: 1292531
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SLW-109-01-T-S
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SLW-109-01-T-S Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	SLW
Package	Bulk
Connector Type	Receptacle
Contact Type	Forked
Style	Board to Board
Number of Positions	9
Number of Positions Loaded	All
Pitch - Mating	0.100" (2.54mm)
Number of Rows	1
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Tin
Insulation Color	Black
Insulation Height	0.180" (4.57mm)
Contact Length - Post	0.115" (2.92mm)
Temperature Range - Operating	-55°C ~ 105°C
Contact Finish - Post	Tin
Mated Stacking Heights	6.09mm
Insulation Material	Polyester, Glass Filled
Contact Shape	Square
Contact Material	Phosphor Bronze
Base Product Number	SLW-109
Other Names	SAM1093-09
Standard Package	1
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1292531-SLW-109-01-T-S
Ultra Librarian 3D Model	Ultra Librarian SLW-109-01-T-S CAD Model

Alternative Products

Description

The Samtec Inc. SLW-109-01-T-S is a rectangular connector with a receptacle type connector and a forked contact type.

Manufacturer: Samtec Inc.
Product Name: SLW-109-01-T-S
Connector Type: Receptacle
Contact Type: Forked
Positions: 9
Application: Board to board connections
Pitch-Mating: 0.100" (2.54mm)
Operating Temperature: -55°C to 105°C
Mounting Type: Through-hole
Insulation Color: Black
