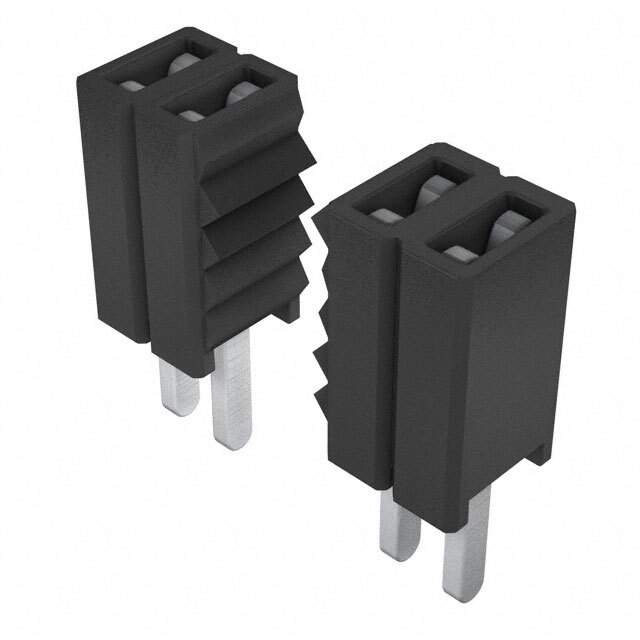

Same model may have multiple batches, images only for reference.

SLM-118-01-S-S

Get a Quote

Part No	SLM-118-01-S-S
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SLM-118-01-S-S Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	SLM
Package	Tube
Connector Type	Receptacle
Contact Type	Forked
Style	Board to Board
Number of Positions	18
Number of Positions Loaded	All
Pitch - Mating	0.050" (1.27mm)
Number of Rows	1
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Insulation Color	Black
Insulation Height	0.180" (4.57mm)
Contact Length - Post	0.115" (2.92mm)
Temperature Range - Operating	-55°C ~ 125°C
Contact Finish - Post	Tin
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Rectangular
Contact Material	Phosphor Bronze
Base Product Number	SLM-118
Standard Package	25
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1292686-SLM-118-01-S-S
Ultra Librarian 3D Model	Ultra Librarian SLM-118-01-S-S CAD Model

Alternative Products

Description

The SLM-118-01-S-S is a rectangular connector receptacle manufactured by Samtec Inc.

Series: SLM series
Positions: 18
Contact Type: Forked
Connector Type: Receptacle
Pitch-Mating: 0.050" (1.27mm)
Mounting: Through-hole technology
Contact Finish-Mating: Gold
Contact Finish-Post: Tin
Insulation Material: Liquid crystal polymer (LCP)
Insulation Color: Black
Temperature Range: -55°C to 125°C
Application: Board-to-board-style connectors
