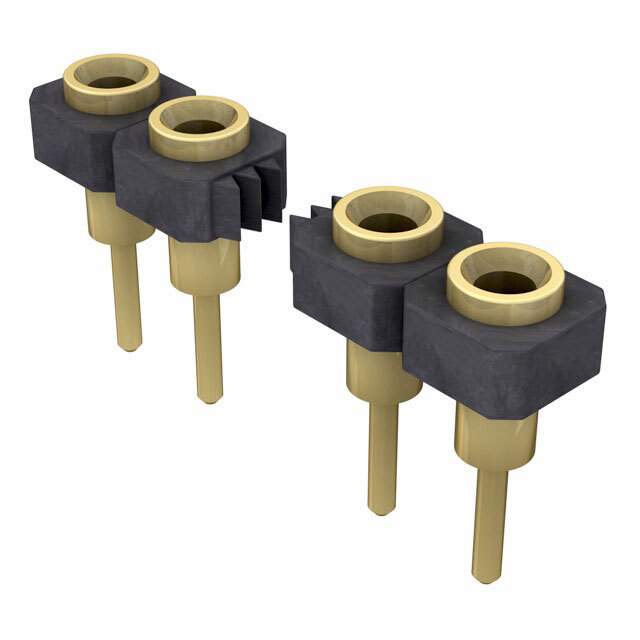

Same model may have multiple batches, images only for reference.

SL-115-G-11

Name: SL-115-G-11
Brand: Samtec Inc.
SKU: 1292839
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SL-115-G-11
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SL-115-G-11 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	SL
Package	Bulk
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board
Number of Positions	15
Number of Positions Loaded	All
Pitch - Mating	0.100" (2.54mm)
Number of Rows	1
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Insulation Color	Black
Insulation Height	0.132" (3.35mm)
Contact Length - Post	0.108" (2.75mm)
Temperature Range - Operating	-55°C ~ 125°C
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Circular
Contact Material	Beryllium Copper
Base Product Number	SL-115
Other Names	SAM1103-15
Standard Package	1
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1292839-SL-115-G-11
Ultra Librarian 3D Model	Ultra Librarian SL-115-G-11 CAD Model

Alternative Products

Description

The Samtec Inc. SL series receptacle connector is designed for board to board connections.

Series: SL
Connector Type: Receptacle
Connection Type: Board to Board
Pitch: 0.100" (2.54mm)
Positions: 15
Row: Single
Contact Shape: Circular
Contact Material: Beryllium Copper
Contact Finish on Mating: Gold
Contact Finish Thickness: 10.0µin (0.25µm)
Operating Temperature: -55°C ~ 125°C
Insulation Material: Liquid Crystal Polymer (LCP)
Mounting Type: Through Hole
Insulation Height: 0.132" (3.35mm)
Contact Length of Post: 0.108" (2.75mm)
