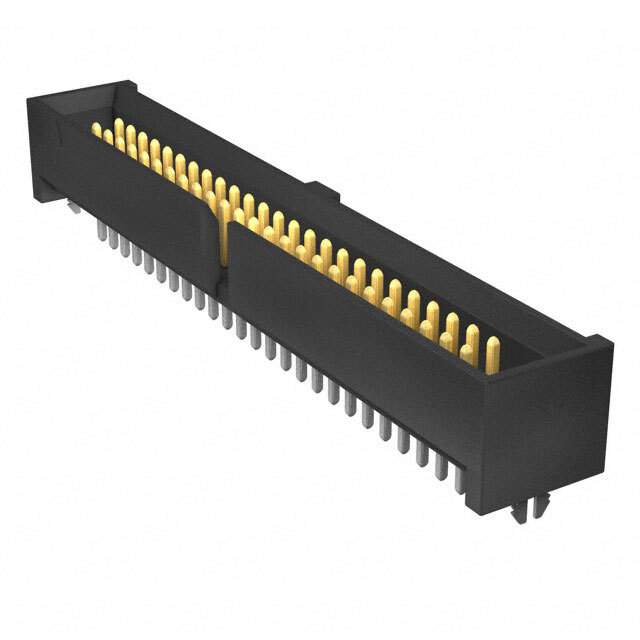

SHF-125-01-L-D-TH

Name: SHF-125-01-L-D-TH
Brand: Samtec Inc.
SKU: 1293122
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SHF-125-01-L-D-TH
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SHF-125-01-L-D-TH Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	Samtec Inc.
Series	SHF
Package	Tube
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.050" (1.27mm)
Number of Positions	50
Number of Rows	2
Row Spacing - Mating	0.050" (1.27mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.120" (3.05mm)
Contact Length - Post	0.075" (1.91mm)
Insulation Height	0.210" (5.33mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP)
Features	Keying Slot
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	3A
Base Product Number	SHF-125
Other Names	SAM11776,SHF-125-01-L-D-TH
Standard Package	15
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1293122-SHF-125-01-L-D-TH
Ultra Librarian 3D Model	Ultra Librarian SHF-125-01-L-D-TH CAD Model

Alternative Products

Description

The SHF-125-01-L-D-TH is a rectangular connector manufactured by Samtec Inc.

Series: SHF
Positions: 50
Features: Keying slot
Type: Header with male pins
Loaded Positions: All
Rows: Two
Termination: Solder
Fastening: Push-pull
Contact Material: Phosphor bronze
Current Rating: 3A
Pitch-Mating: 0.050" (1.27mm)
Contact Finish-Mating: 10.0µin (0.25µm)
Contact Finish-Post: Tin
Insulation Color: Black
Style: Board-to-cable/wire
Temperature Range: -55°C to 125°C
MSL Level: 1 (Unlimited)
HTSUS: 8536.69.4040
