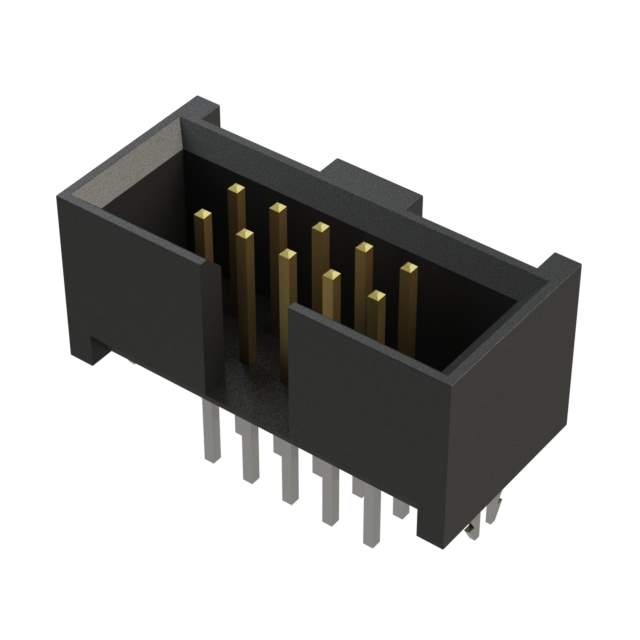

SHF-105-01-L-D-TH-LC Real Image
Same model may have multiple batches, images only for reference.

SHF-105-01-L-D-TH-LC

Part No SHF-105-01-L-D-TH-LC
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SHF-105-01-L-D-TH-LC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr Samtec Inc.
Series SHF
Package Tube
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.050" (1.27mm)
Number of Positions 10
Number of Rows 2
Row Spacing - Mating 0.050" (1.27mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.120" (3.05mm)
Contact Length - Post 0.075" (1.91mm)
Insulation Height 0.210" (5.33mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 10.0µin (0.25µm)
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Liquid Crystal Polymer (LCP)
Features Board Lock, Keying Slot
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 3A
Base Product Number SHF-105
Other Names SHF-105-01-L-D-TH-LC,SAM11769
Standard Package 45
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1293148-SHF-105-01-L-D-TH-LC
Ultra Librarian 3D Model Ultra Librarian SHF-105-01-L-D-TH-LC CAD Model

Description

The SHF series connector is a header type connector with 10 positions and 2 rows.

  • Type: Header
  • Positions: 10
  • Rows: 2
  • Features: Board Lock, Keying Slot
  • Contact Type: Male Pin
  • Positions Loaded: All positions loaded
  • Fastening Type: Push-Pull
  • Voltage Rating: -
  • Insulation Material: Liquid Crystal Polymer (LCP)
  • Contact Material: Phosphor Bronze
  • Contact Finish Thickness: 10.0µin (0.25µm) for mating and tin for post
  • Pitch: 0.050" (1.27mm) for mating and row spacing
  • Application: Suitable for board to cable/wire applications
  • Operating Temperature: -55°C to 125°C
