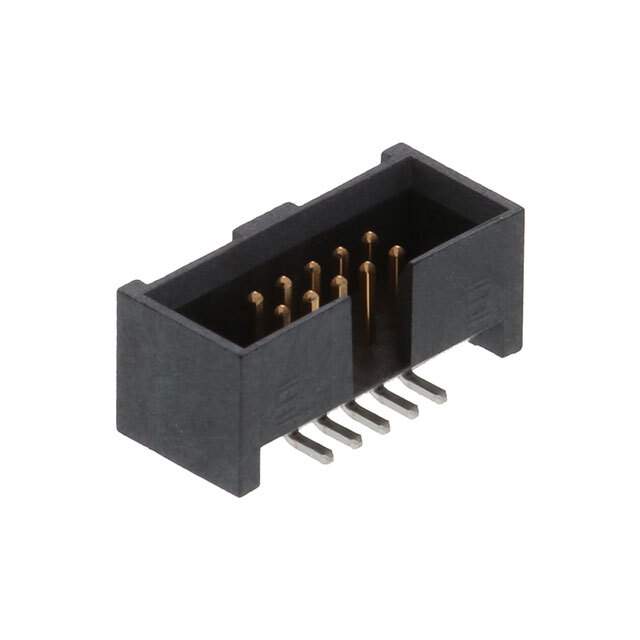

The SHF series from Samtec Inc. presents the SHF-105-01-L-D-SM-TR header connector, a rectangular connector with a male pin contact type.

• Rows: 2
• Positions Loaded: 10
• Pitch: 0.050 inches (1.27 mm)
• Contact Material: Phosphor Bronze
• Contact Finish (Mating): Gold
• Contact Finish Thickness (Mating): 10.0 µin (0.25 µm)
• Contact Finish (Post): Tin
• Current Rating: 3A
• Voltage Rating: None
• Mounting: Surface-Mount
• Fastening Type: Push-Pull
• Packaging: Tape and Reel
• Standard Package: 450
• Temperature Range: -55°C to 125°C
• Insulation Material: Liquid Crystal Polymer (LCP)
• Flammability Rating: UL94 V-0
