Name: SHF-104-01-L-D-SM-TR
Brand: Samtec Inc.
SKU: 1293150
Availability: InStock
Rating: 4.85 (5 reviews)

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	Samtec Inc.
Series	SHF
Package	Tape & Reel (TR)
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.050" (1.27mm)
Number of Positions	8
Number of Rows	2
Row Spacing - Mating	0.050" (1.27mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting	SMD (SMT)
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.120" (3.05mm)
Insulation Height	0.210" (5.33mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP)
Features	Keying Slot
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	3A
Base Product Number	SHF-104
Standard Package	450
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1293150-SHF-104-01-L-D-SM-TR
Ultra Librarian 3D Model	Ultra Librarian SHF-104-01-L-D-SM-TR CAD Model

Description

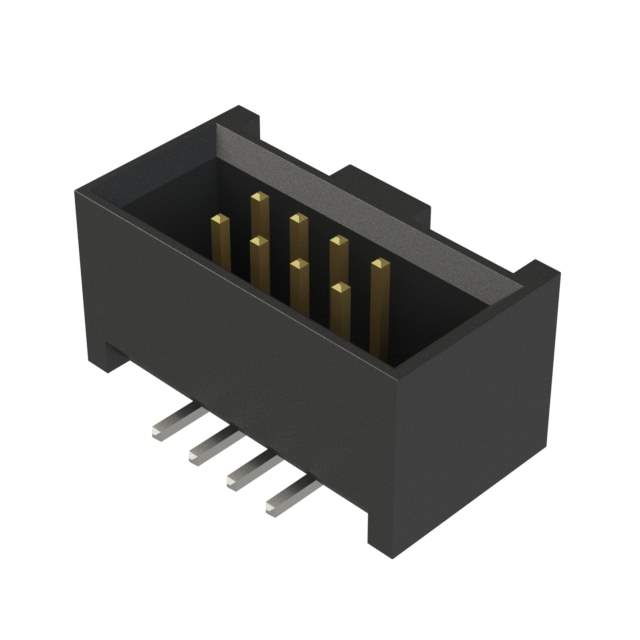

The SHF-104-01-L-D-SM-TR is a rectangular connector header with male pins from Samtec Inc.

Series: SHF
Positions: 8
Feature: Keying Slot
Connector Type: Header
Contact Type: Male Pin
Positions Loaded: All
Rows: 2
Termination: Solder
Fastening Type: Push-Pull
Package: Tape and Reel (TR)
Contact Material: Phosphor Bronze
Insulation Material: Liquid Crystal Polymer (LCP)
Pitch-Mating: 0.050 inches (1.27mm)
Shrouding: Shrouded-4 Wall
Contact Finish-Mating: Gold
Contact Finish Thickness-Mating: 10.0 microns (0.25 micrometers)
Contact Finish-Post: Tin
Insulation Color: Black
Row Spacing-Mating: 0.050 inches (1.27mm)
Contact Length-Mating: 0.120 inches (3.05mm)
Insulation Height: 0.210 inches (5.33mm)
Contact Shape: Square
Temperature Range: -55 degrees Celsius to 125 degrees Celsius
