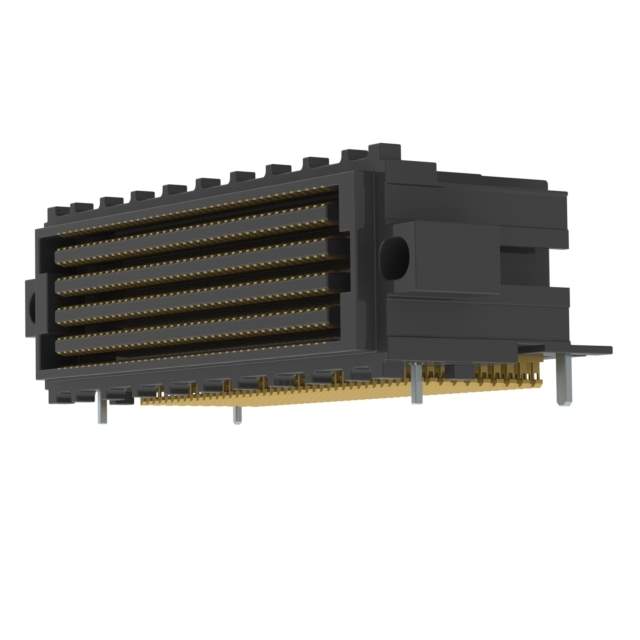

Same model may have multiple batches, images only for reference.

SEAF8-40-1-S-10-2-RA-GP

Name: SEAF8-40-1-S-10-2-RA-GP
Brand: Samtec Inc.
SKU: 1293598
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SEAF8-40-1-S-10-2-RA-GP
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SEAF8-40-1-S-10-2-RA-GP Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	Samtec Inc.
Series	SEARAY™ SEAF
Package	Tape & Reel (TR)
Connector Type	High Density Array, Female
Number of Positions	400
Pitch	0.031" (0.80mm)
Number of Rows	10
Mounting Type	Surface Mount, Right Angle
Features	Board Guide, Mating Flange
Contact Finish	Gold
Contact Finish Thickness	30.0µin (0.76µm)
Base Product Number	SEAF8-40
Standard Package	75
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1293598-SEAF8-40-1-S-10-2-RA-GP
Ultra Librarian 3D Model	Ultra Librarian SEAF8-40-1-S-10-2-RA-GP CAD Model

Alternative Products

Description

The Samtec Inc. SEAF8-40-1-S-10-2-RA-GP is a high-density array connector that belongs to the SEARAY™ SEAF series.

Connector Type: female
Rows: 10
Positions: 400 loaded with gold contacts
Pitch: 0.031 inches (0.80mm)
Features: board guide and mating flange
Mounting: surface mounted
Mounting Type: right-angle
Ideal for: mezzanine board-to-board connections
