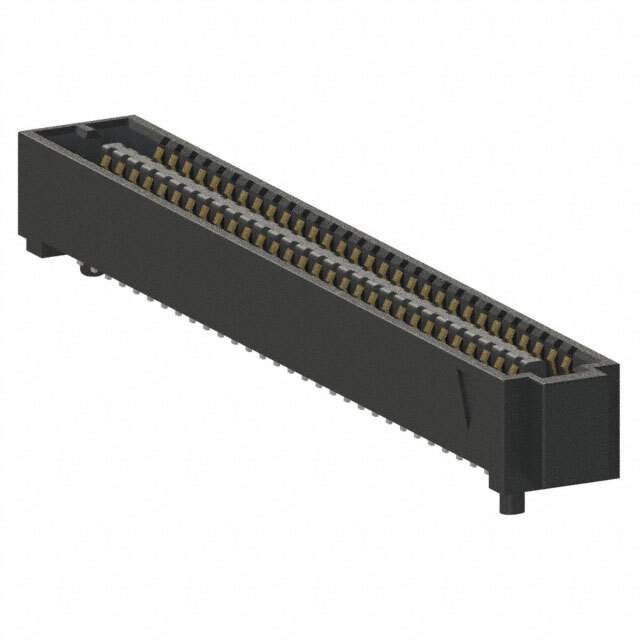

SEAF8-30-05.0-L-04-2-K

Name: SEAF8-30-05.0-L-04-2-K
Brand: Samtec Inc.
SKU: 1293855
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SEAF8-30-05.0-L-04-2-K
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SEAF8-30-05.0-L-04-2-K Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	Samtec Inc.
Series	SEARAY™ SEAF
Package	Tape & Reel
Product Status	Obsolete
Connector Type	High Density Array, Female
Number of Positions	120
Pitch	0.031" (0.80mm)
Number of Rows	4
Mounting	SMD (SMT)
Features	Board Guide, Pick and Place
Contact Finish	Gold
Contact Finish Thickness	10.0µin (0.25µm)
Mated Stacking Heights	7mm, 10mm
Height Above Board	0.180" (4.57mm)
Base Product Number	SEAF8-30
Other Names	612-SEAF8-30-05.0-L-04-2-KTR,SEAF8-30-05.0-L-04-2-K,612-SEAF8-30-05.0-L-04-2-KCT,612-SEAF8-30-05.0-L-04-2-KDKR
Standard Package	1
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1293855-SEAF8-30-05.0-L-04-2-K
Ultra Librarian 3D Model	Ultra Librarian SEAF8-30-05.0-L-04-2-K CAD Model

Alternative Products

Description

The SEARAY™ SEAF is a rectangular connector that consists of arrays, edge type, mezzanine (board to board) connectors.

Part Number: SEAF8-30-05.0-L-04-2-K
Connector Type: High-density array, female
Number of Positions: 120
Pitch: 0.031" (0.80mm)
Contact Finish: Gold
Packaging: Tape and reel
Height Above Board: 0.180" (4.57mm)
ECCN: EAR99
MSL Level: 1 (Unlimited)
HTSUS Code: 8536.69.4040
Manufacturer: Samtec Inc.
