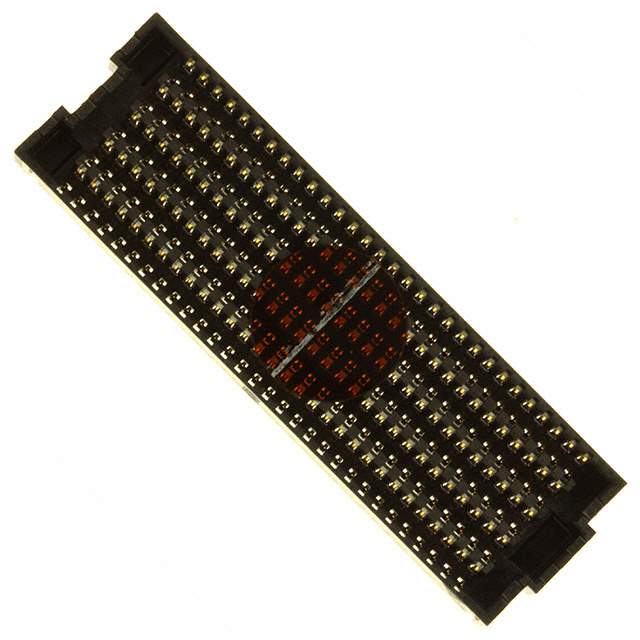

SEAF-50-06.0-S-06-2-A-K-TR Real Image
Same model may have multiple batches, images only for reference.

SEAF-50-06.0-S-06-2-A-K-TR

Part No SEAF-50-06.0-S-06-2-A-K-TR
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SEAF-50-06.0-S-06-2-A-K-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Samtec Inc.
Series SEARAY™ SEAF
Package Tape & Reel (TR),Cut Tape (CT)
Connector Type High Density Array, Female
Number of Positions 300
Pitch 0.050" (1.27mm)
Number of Rows 6
Mounting SMD (SMT)
Features Board Guide, Pick and Place
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Mated Stacking Heights 8mm, 9mm, 9.5mm, 12.5mm, 13mm, 15mm, 17mm, 19mm
Height Above Board 0.238" (6.05mm)
Base Product Number SEAF-50
Other Names SAM15059DKR,SAM15059TR,SEAF-50-06.0-S-06-2-A-K-TR,SAM15059DKR,SAM15059CT,SAM15059DKRINACTIVE
Standard Package 325
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1293846-SEAF-50-06.0-S-06-2-A-K-TR
Ultra Librarian 3D Model Ultra Librarian SEAF-50-06.0-S-06-2-A-K-TR CAD Model

Description

The SEARAY™ SEAF series from Samtec Inc. offers a high-density array, female connector type with a pitch of 0.050” (1.27mm).

  • Number of Positions: 300
  • Number of Rows: 6
  • Contact Finish: Gold
  • Features: Board guide, pick and place features
  • Contact Finish Thickness: 30.0μin (0.76μm)
  • Packaging: Tape and reel (TR) and cut tape (CT)
  • Mated Stacking Heights: 8mm, 9mm, 9.5mm, 12.5mm, 13mm, 15mm, 17mm, and 19mm
  • Height Above Board: 0.238” (6.05mm)
  • Mounting Type: Surface mount (SMT)
  • ECCN: EAR99
  • REACH: Unaffected
  • HTSUS: 8536.69.4040
  • Standard Package: 325 units
