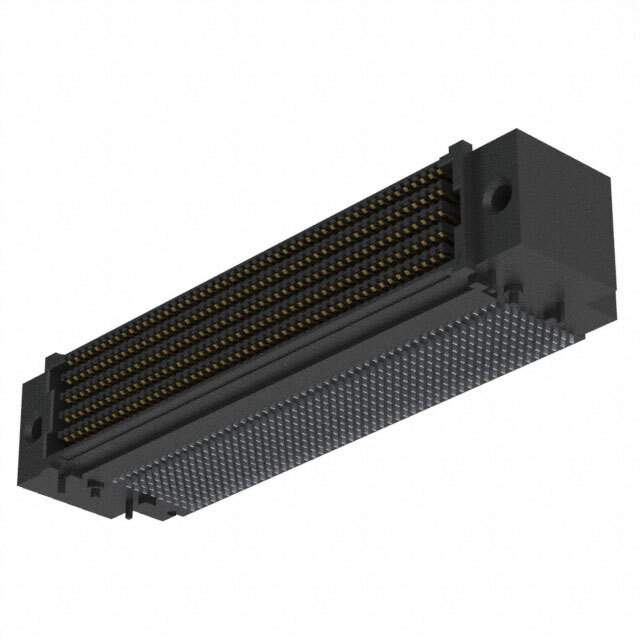

Same model may have multiple batches, images only for reference.

SEAF-50-01-S-10-2-RA-GP-TR

Name: SEAF-50-01-S-10-2-RA-GP-TR
Brand: Samtec Inc.
SKU: 1293573
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SEAF-50-01-S-10-2-RA-GP-TR
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SEAF-50-01-S-10-2-RA-GP-TR Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	Samtec Inc.
Series	SEARAY™ SEAF
Package	Tape & Reel (TR)
Connector Type	High Density Array, Female
Number of Positions	500
Pitch	0.050" (1.27mm)
Number of Rows	10
Mounting Type	Surface Mount, Right Angle
Features	Board Guide, Mating Flange
Contact Finish	Gold
Contact Finish Thickness	30.0µin (0.76µm)
Height Above Board	0.611" (15.53mm)
Base Product Number	SEAF-50
Standard Package	50
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1293573-SEAF-50-01-S-10-2-RA-GP-TR
Ultra Librarian 3D Model	Ultra Librarian SEAF-50-01-S-10-2-RA-GP-TR CAD Model

Alternative Products

Description

The Samtec Inc. SEARAY™ SEAF series high-density array connector is a highly reliable solution for mezzanine board-to-board connectors.

Positions: 500
Contact Type: Female
Mounting: Surface mount, right angle mounting
Pitch: 0.050 inches
Height Above Board: 0.611 inches
Contact Material: Gold
Insulation Material: Black liquid crystal polymer (LCP)
Temperature Range: -55°C to 125°C
Current Rating: Not applicable
Packaging: Tape and reel
