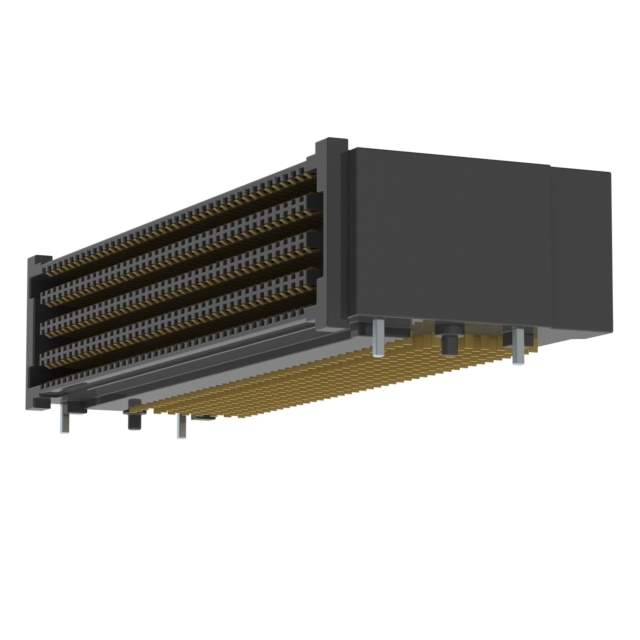

SEAF-40-01-S-08-2-RA-K-TR Real Image
Same model may have multiple batches, images only for reference.

SEAF-40-01-S-08-2-RA-K-TR

Part No SEAF-40-01-S-08-2-RA-K-TR
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SEAF-40-01-S-08-2-RA-K-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Samtec Inc.
Series SEARAY™ SEAF
Package Tape & Reel (TR)
Connector Type High Density Array, Female
Number of Positions 320
Pitch 0.050" (1.27mm)
Number of Rows 8
Mounting Type Surface Mount, Right Angle
Features Board Guide, Pick and Place
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Height Above Board 0.511" (12.99mm)
Base Product Number SEAF-40
Standard Package 75
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1293612-SEAF-40-01-S-08-2-RA-K-TR
Ultra Librarian 3D Model Ultra Librarian SEAF-40-01-S-08-2-RA-K-TR CAD Model

Description

The SEARAY™ SEAF series is a range of high-density female connectors designed for mezzanine (board-to-board) connections.

  • Positions: 320 loaded in eight rows
  • Pitch: 0.050" (1.27mm)
  • Height Above Board: 0.511" (12.99mm)
  • Mounting: right-angle surface mount
  • Contacts: gold finish
  • Contact Finish Thickness: 30.0µin (0.76µm)
  • Package: tape & reel
  • Units per Package: 75
  • Features: pick and place features
  • MSL Level: unlimited
  • ECCN: EAR99
  • Insulation Material: black
  • Connector Type: high-density array female
  • Designed for: high-density applications
