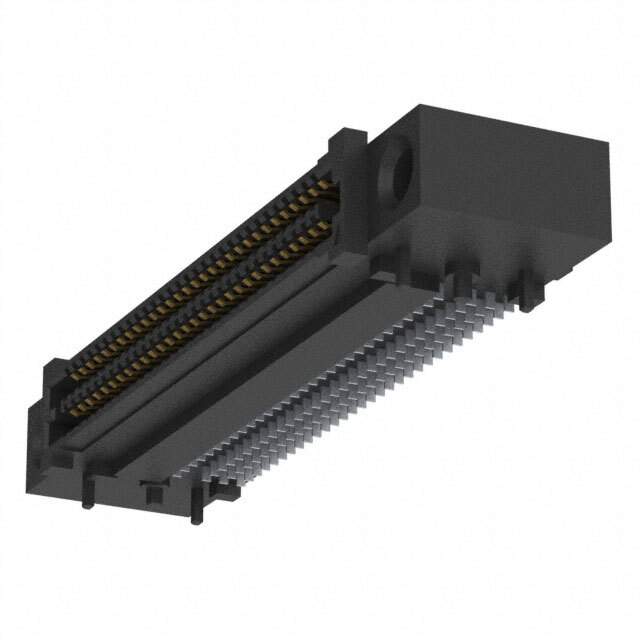

SEAF-30-01-L-04-2-RA-GP-TR

Name: SEAF-30-01-L-04-2-RA-GP-TR
Brand: Samtec Inc.
SKU: 1293791
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SEAF-30-01-L-04-2-RA-GP-TR
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SEAF-30-01-L-04-2-RA-GP-TR Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	Samtec Inc.
Series	SEARAY™ SEAF
Package	Tape & Reel (TR),Cut Tape (CT)
Connector Type	High Density Array, Female
Number of Positions	120
Pitch	0.050" (1.27mm)
Number of Rows	4
Mounting Type	Surface Mount, Right Angle
Features	Board Guide, Mating Flange
Contact Finish	Gold
Contact Finish Thickness	10.0µin (0.25µm)
Height Above Board	0.311" (7.90mm)
Base Product Number	SEAF-30
Other Names	SEAF-30-01-L-04-2-RA-GP-TR,SAM14324DKR,SAM14324DKRINACTIVE,SAM14324DKR,SAM14324CT,SAM14324TR,SEAF-30-01-L-04-2-RA-GP-FR
Standard Package	175
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1293791-SEAF-30-01-L-04-2-RA-GP-TR
Ultra Librarian 3D Model	Ultra Librarian SEAF-30-01-L-04-2-RA-GP-TR CAD Model

Alternative Products

Description

The SEARAY™ SEAF 120-position high-density array female connector is a rectangular connector used for board-to-board interconnections.

Number of Positions: 120
Pitch: 0.050 inches (1.27mm)
Rows: Four
Contact Finish: Gold
Contact Finish Thickness: 10.0μin (0.25μm)
Packages: Tape and reel and cut tape
Height Above Board: 0.311 inches (7.90mm)
Standard Package: 175
Mounting: Surface mount
Orientation: Right-angle
Classification: EAR99 and REACH unaffected
HTSUS code: 8536.69.4040
Manufacturer: Samtec Inc.
Features: Board guide and mating flange
