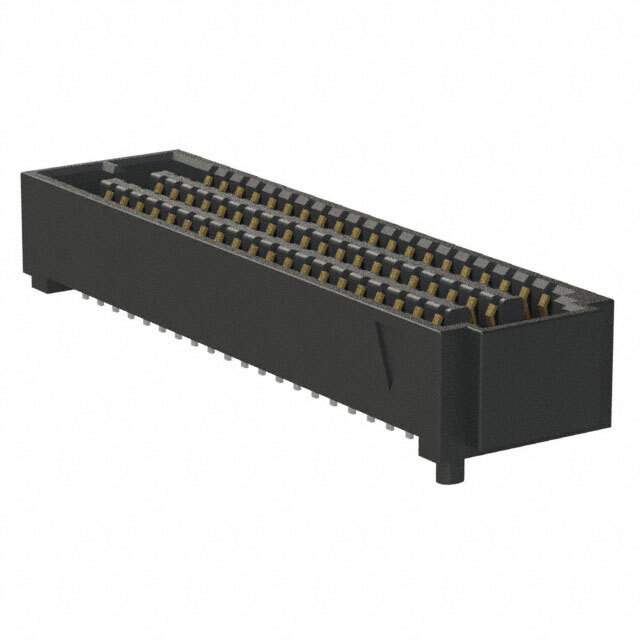

SEAF-20-06.0-S-06-2-A-K-TR

Name: SEAF-20-06.0-S-06-2-A-K-TR
Brand: Samtec Inc.
SKU: 1293886
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SEAF-20-06.0-S-06-2-A-K-TR
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SEAF-20-06.0-S-06-2-A-K-TR Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	Samtec Inc.
Series	SEARAY™ SEAF
Package	Tape & Reel
Connector Type	High Density Array, Female
Number of Positions	120
Pitch	0.050" (1.27mm)
Number of Rows	6
Mounting	SMD (SMT)
Features	Board Guide, Pick and Place
Contact Finish	Gold
Contact Finish Thickness	30.0µin (0.76µm)
Mated Stacking Heights	8mm, 9mm, 9.5mm, 12.5mm, 13mm, 15mm, 17mm, 19mm
Height Above Board	0.238" (6.05mm)
Base Product Number	SEAF-20
Other Names	SEAF-20-06.0-S-06-2-A-K-TR,SAM14315DKR,SAM14315CT,SAM14315TR
Standard Package	325
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1293886-SEAF-20-06.0-S-06-2-A-K-TR
Ultra Librarian 3D Model	Ultra Librarian SEAF-20-06.0-S-06-2-A-K-TR CAD Model

Alternative Products

Description

The SEARAY™ SEAF is a high-density array, female rectangular connector from Samtec Inc.

Positions: 120
Pitch: 0.050 inches (1.27mm)
Board Guide: Yes
Pick and Place: Yes
Rows: Six
Contact Finish: Gold
Contact Finish Thickness: 30.0 microns (0.76 microns)
Package: Tape and Reel
Mated Stacking Heights: 8mm, 9mm, 9.5mm, 12.5mm, 13mm, 15mm, 17mm, and 19mm
Height Above Board: 0.238 inches (6.05mm)
MSL Level: 1 (unlimited)
HTSUS Code: 8536.69.4040
