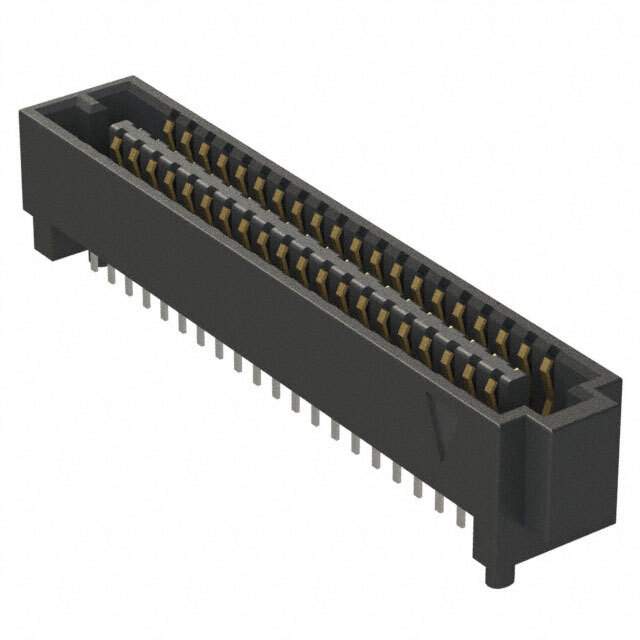

SEAF-20-05.0-L-04-2-A-K-TR

Name: SEAF-20-05.0-L-04-2-A-K-TR
Brand: Samtec Inc.
SKU: 1293873
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SEAF-20-05.0-L-04-2-A-K-TR
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SEAF-20-05.0-L-04-2-A-K-TR Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	Samtec Inc.
Series	SEARAY™ SEAF
Package	Tape & Reel
Connector Type	High Density Array, Female
Number of Positions	80
Pitch	0.050" (1.27mm)
Number of Rows	4
Mounting	SMD (SMT)
Features	Board Guide, Pick and Place
Contact Finish	Gold
Contact Finish Thickness	10.0µin (0.25µm)
Mated Stacking Heights	7mm, 8mm, 8.5mm, 11.5mm, 12mm, 14mm, 16mm, 18mm
Height Above Board	0.199" (5.05mm)
Base Product Number	SEAF-20
Other Names	SEAF-20-05.0-L-04-2-A-K-TR,SEAF-20-05.0-L-04-2-A-K-FR,SAM14301DKR,SAM14301TR,SAM14301CT
Standard Package	375
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1293873-SEAF-20-05.0-L-04-2-A-K-TR
Ultra Librarian 3D Model	Ultra Librarian SEAF-20-05.0-L-04-2-A-K-TR CAD Model

Alternative Products

Description

The SEARAY SEAF series female high-density array connector is a high-quality board-to-board connector with four rows of 80 positions.

Positions: 80
Pitch: 0.050 inches
Termination: Gold plating with a thickness of 10.0µin
Packaging: Tape and Reel
Standard Package: 375
ECCN: EAR99 compliant
MSL Level: 1
