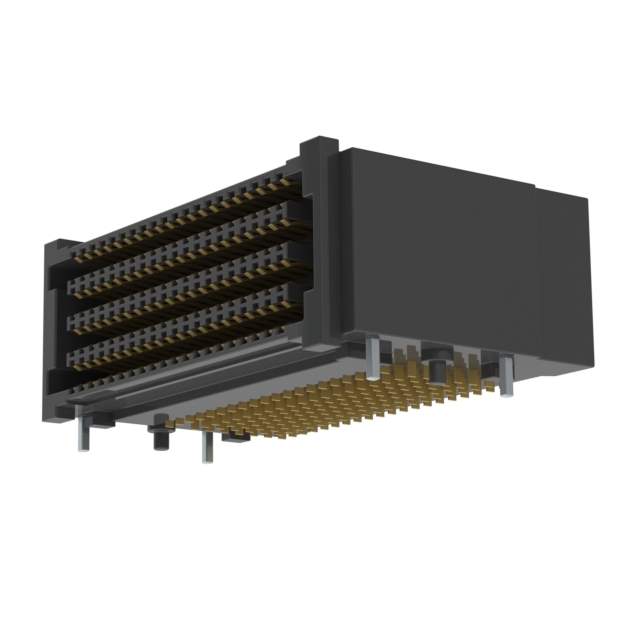

SEAF-20-01-L-08-1-RA-K-TR

Name: SEAF-20-01-L-08-1-RA-K-TR
Brand: Samtec Inc.
SKU: 1293719
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SEAF-20-01-L-08-1-RA-K-TR
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SEAF-20-01-L-08-1-RA-K-TR Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	Samtec Inc.
Series	SEARAY™ SEAF
Package	Tape & Reel (TR)
Connector Type	High Density Array, Female
Number of Positions	160
Pitch	0.050" (1.27mm)
Number of Rows	8
Mounting Type	Surface Mount, Right Angle
Features	Board Guide, Pick and Place
Contact Finish	Gold
Contact Finish Thickness	10.0µin (0.25µm)
Height Above Board	0.511" (12.99mm)
Base Product Number	SEAF-20
Standard Package	75
RoHS Status	RoHS non-compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1293719-SEAF-20-01-L-08-1-RA-K-TR
Ultra Librarian 3D Model	Ultra Librarian SEAF-20-01-L-08-1-RA-K-TR CAD Model

Alternative Products

Description

The SEARAY™ SEAF series connector is a high density array, female connector with 160 positions and a pitch of 0.050 inches (1.27mm).

Height Above Board: 0.511 inches (12.99mm)
Mounting Type: Surface mountable
Mounting Type: Right angle
Contact Finish: Gold-plated
Contact Finish Thickness: 10.0µin (0.25µm)
Packaging: Tape & reel (TR)
Standard Package: 75
Category: Connectors, interconnects>rectangular connectors - arrays, edge type, mezzanine (board to board)
