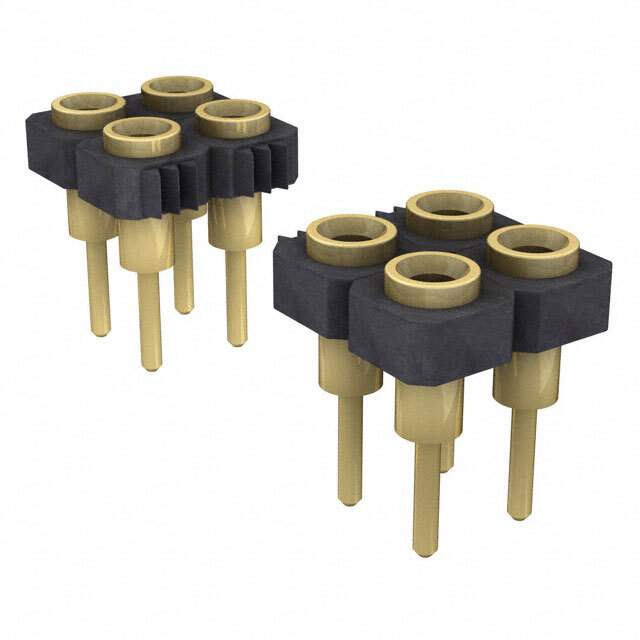

SDL-136-G-11

Name: SDL-136-G-11
Brand: Samtec Inc.
SKU: 1292996
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SDL-136-G-11
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SDL-136-G-11 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	SDL
Package	Tube
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board
Number of Positions	72
Number of Positions Loaded	All
Pitch - Mating	0.100" (2.54mm)
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Insulation Color	Black
Insulation Height	0.132" (3.35mm)
Contact Length - Post	0.108" (2.75mm)
Temperature Range - Operating	-55°C ~ 125°C
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Circular
Contact Material	Beryllium Copper
Base Product Number	SDL-136
Other Names	SAM1134-36
Standard Package	6
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1292996-SDL-136-G-11
Ultra Librarian 3D Model	Ultra Librarian SDL-136-G-11 CAD Model

Alternative Products

Description

The SDL series rectangular connector is a receptacle type product designed for female sockets.

Positions Loaded: 72
Contact Shape: Circular
Fastening Type: Push-pull
Termination: Soldered
Contact Material: Beryllium copper
Insulation Material: Liquid crystal polymer (LCP)
Pitch-Mating: 0.100 inches (2.54mm)
Contact Finish-Mating: Gold, with a thickness of 10.0u in (0.25u m)
Insulation Color: Black
Mounting Type: Through hole
Row Spacing-Mating: 0.100 inches (2.54mm)
Contact Length-Post: 0.108 inches (2.75mm)
Insulation Height: 0.132 inches (3.35mm)
Temperature Range: Between -55 degrees Celsius to 125 degrees Celsius
Manufacturer: Samtec Inc.
Base Product Number: SDL-136
