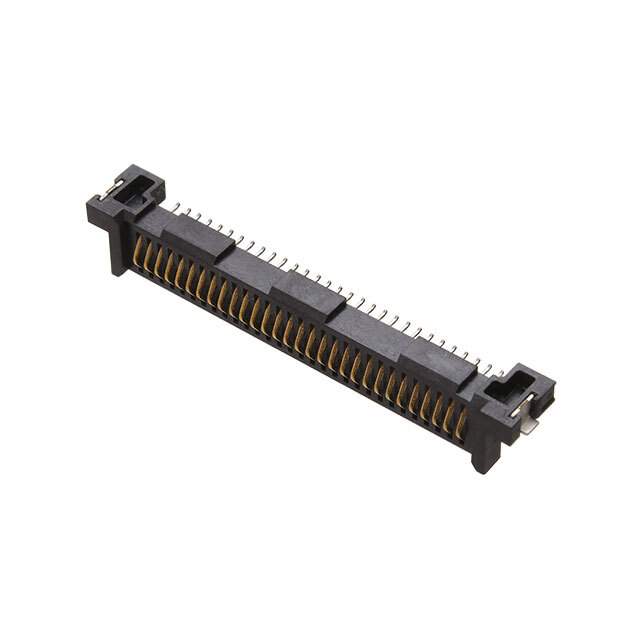

SAL1-130-01-S-S-A-TR Real Image
Same model may have multiple batches, images only for reference.

SAL1-130-01-S-S-A-TR

Part No SAL1-130-01-S-S-A-TR
Manufacturer Samtec Inc.
Catalog Card Edge Connectors - Edgeboard Connectors
Datasheet
SAL1-130-01-S-S-A-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Card Edge Connectors - Edgeboard Connectors
Mfr Samtec Inc.
Series SataLink™ SAL1
Package Tape & Reel
Gender Female
Number of Positions/Bay/Row 30
Number of Positions 30
Card Thickness 0.063" ~ 0.093" (1.60mm ~ 2.36mm)
Number of Rows 1
Pitch 0.039" (1.00mm)
Read Out Single
Features Board Guide, Solder Retention
Mounting SMD (SMT)
Termination Solder
Contact Material Beryllium Copper
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Color Black
Temperature Range - Operating -55°C ~ 125°C
Material - Insulation Liquid Crystal Polymer (LCP)
Base Product Number SAL1-130
Other Names SAM14286DKR,SAL1-130-01-S-S-A-TR,SAM14286CT,SAM14286TR
Standard Package 400
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1294246-SAL1-130-01-S-S-A-TR
Ultra Librarian 3D Model Ultra Librarian SAL1-130-01-S-S-A-TR CAD Model

Description

The Samtec SAL1-130-01-S-S-A-TR is a female card edge connector with 30 positions, designed for use in SATA applications.

  • Pitch: 1.00mm
  • Contact Finish Thickness: 30.0μin
  • Contact Material: Beryllium copper
  • Temperature Range: -55°C to 125°C
  • Features: Board guide and solder retention
