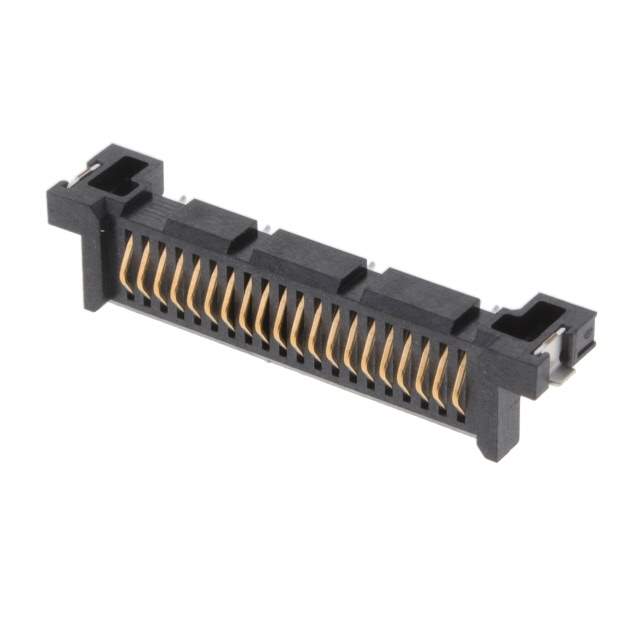

SAL1-120-01-S-S-A-TR Real Image
Same model may have multiple batches, images only for reference.

SAL1-120-01-S-S-A-TR

Part No SAL1-120-01-S-S-A-TR
Manufacturer Samtec Inc.
Catalog Card Edge Connectors - Edgeboard Connectors
Datasheet
SAL1-120-01-S-S-A-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Card Edge Connectors - Edgeboard Connectors
Mfr Samtec Inc.
Series SataLink™ SAL1
Package Tape & Reel
Gender Female
Number of Positions/Bay/Row 20
Number of Positions 20
Card Thickness 0.063" ~ 0.093" (1.60mm ~ 2.36mm)
Number of Rows 1
Pitch 0.039" (1.00mm)
Read Out Single
Features Board Guide, Solder Retention
Mounting SMD (SMT)
Termination Solder
Contact Material Beryllium Copper
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Color Black
Temperature Range - Operating -55°C ~ 125°C
Material - Insulation Liquid Crystal Polymer (LCP)
Base Product Number SAL1-120
Other Names SAM14967TR,SAM14967DKR,SAL1-120-01-S-S-A-FR,SAM14967CT
Standard Package 400
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1294247-SAL1-120-01-S-S-A-TR
Ultra Librarian 3D Model Ultra Librarian SAL1-120-01-S-S-A-TR CAD Model

Description

The Samtec Inc. SataLink™ SAL1 series connector is a high-quality card edge connector that is ideal for use in various applications. This connector has a Win Source Part Number of 1294247-SAL1-120-01-S-S-A-TR and is designed for use in SMD (SMT) mounting.

  • Pitch: 0.039" (1.00mm)
  • Number of Positions: 20
  • Contact Material: Beryllium copper
  • Contact Finish: Gold for superior conductivity
  • Contact Finish Thickness: 30.0µin
  • Temperature Range: -55°C to 125°C
