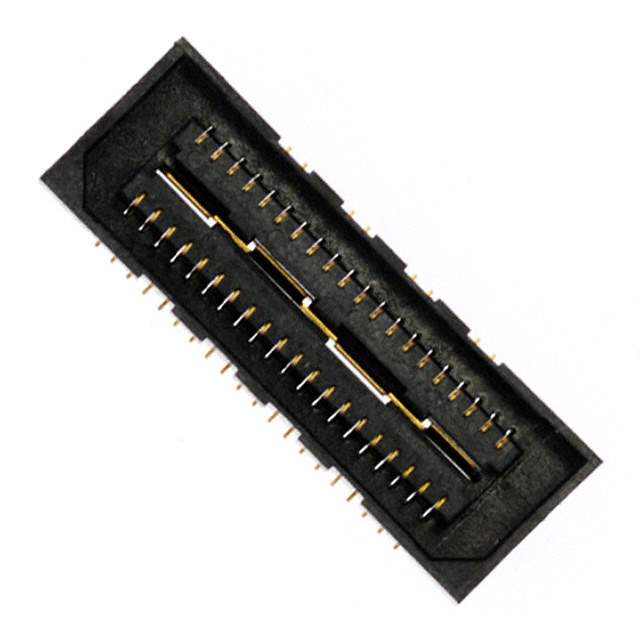

QSE-020-01-F-D-A Real Image
Same model may have multiple batches, images only for reference.

QSE-020-01-F-D-A

Part No QSE-020-01-F-D-A
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description CONN RCPT 40POS SMD GOLD / 40 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
Datasheet
QSE-020-01-F-D-A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Arrays, Edge Type, Mezzanine (Board to Board)
Manufacturer Samtec Inc.
Packaging Tray
Connector Type Receptacle, Center Strip Contacts
Number of Positions 40
Pitch 0.031" (0.80mm)
Number of Rows 2
Mounting Surface Mount
Features Board Guide, Ground Bus (Plane)
Contact Finish Gold
Contact Finish Thickness 3.00µin (0.076µm)
Mated Stacking Heights 5mm, 8mm, 11mm, 14mm, 16mm, 19mm, 25mm
Height Above Board 0.128" (3.25mm)
Base Product Number QSE-020
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number QSE-020-01-F-D-A-ND,SAM8955
Standard Package 96
Win Source Part Number 1332060-QSE-020-01-F-D-A
Ultra Librarian 3D Model Ultra Librarian QSE-020-01-F-D-A CAD Model

Description

The Samtec Inc. 1332060-QSE-020-01-F-D-A is a rectangular connector array designed for board-to-board connection.

  • Positions: 40
  • Connector Type: Receptacle with Center Strip Contacts
  • Rows: Two
  • Contact Finish: Gold
  • Contact Finish Thickness: 3.00µin (0.076µm)
  • Pitch: 0.031" (0.80mm)
  • Mounting Type: Surface Mountable
  • Mated Stacking Heights: 5mm, 8mm, 11mm, 14mm, 16mm, 19mm, and 25mm
  • Features: Board Guide, Ground Bus (Plane)
  • Height Above Board: 0.128" (3.25mm)
  • Packaging: Tray
  • Standard Package: 96
  • Other Part Numbers: QSE-020-01-F-D-A-ND, SAM8955
  • ROHS3 Compliant: Yes
  • ECCN: EAR99
