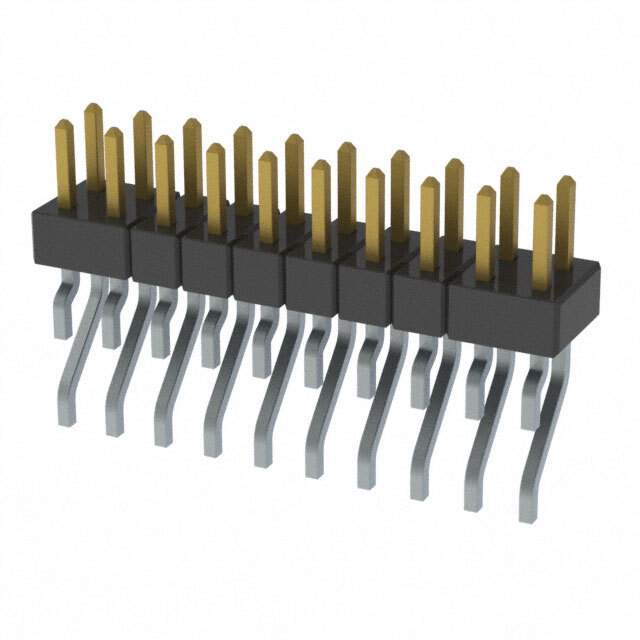

Same model may have multiple batches, images only for reference.

MMT-110-01-F-DH-P

Name: MMT-110-01-F-DH-P
Brand: Samtec Inc.
SKU: 1350561
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	MMT-110-01-F-DH-P
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER SMD R/A 20POS 2MM / Connector Header Surface Mount, Right Angle 20 position 0.079" (2.00mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Samtec Inc.
Series	MMT
Package	Tube
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Number of Positions	20
Number of Rows	2
Row Spacing - Mating	0.079" (2.00mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Unshrouded
Mounting Type	Surface Mount, Right Angle
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.126" (3.20mm)
Insulation Height	0.157" (4.00mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	3.00µin (0.076µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP)
Features	Pick and Place
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	3A
Base Product Number	MMT-110
Standard Package	27
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
California Prop 65	Warning Information
Win Source Part Number	1350561-MMT-110-01-F-DH-P
Ultra Librarian 3D Model	Ultra Librarian MMT-110-01-F-DH-P CAD Model

Alternative Products

Description

The MMT series of male pin headers from Samtec Inc. are ideal for use in board-to-board or cable applications.

Series: MMT
Type: Male Pin Header
Application: Board-to-Board, Cable
Shrouding: Unshrouded
Orientation: Right Angle
Mounting Type: Surface Mount
Mating Pitch: 2.00mm
Fastening Type: Push-Pull
Positions Loaded: 20
Contact Material: Phosphor Bronze
Contact Finish - Mating: Gold, 3.00µin (0.076µm)
Contact Finish - Post: Tin
Material Flammability Rating: UL94 V-0
Insulation Material: Liquid Crystal Polymer (LCP)
Temperature Range: -55°C to 125°C
Current Rating: 3A
Package: Tube
Standard Package: 27
Pick and Place Enabled: Yes
