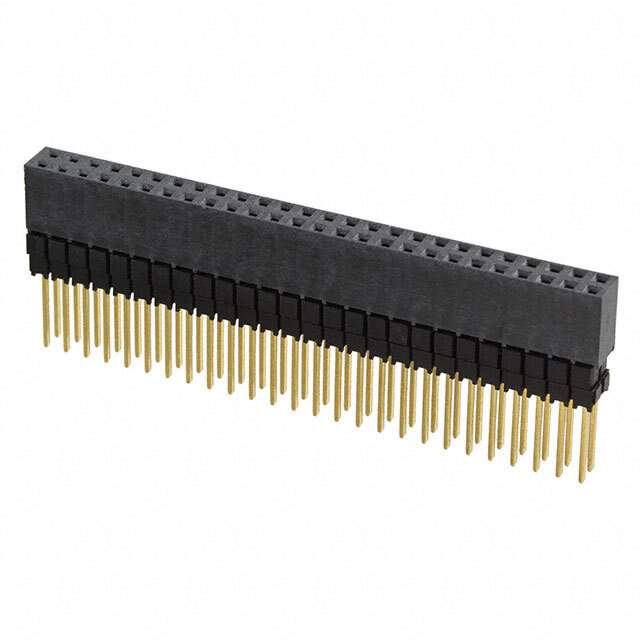

ESQ-126-49-G-D

Name: ESQ-126-49-G-D
Brand: Samtec Inc.
SKU: 1352130
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	ESQ-126-49-G-D
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN SOCKET 52POS 0.1 GOLD PCB / 52 Position Elevated Socket Connector 0.100" (2.54mm) Through Hole Gold
Datasheet	ESQ-126-49-G-D Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	ESQ
Package	Tube
Connector Type	Elevated Socket
Contact Type	Forked
Style	Board to Board
Number of Positions	52
Number of Positions Loaded	All
Pitch - Mating	0.100" (2.54mm)
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	20.0µin (0.51µm)
Insulation Color	Black
Insulation Height	0.535" (13.60mm)
Contact Length - Post	0.380" (9.65mm)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Gold
Current Rating (Amps)	5.7A per Contact
Voltage Rating	550VAC
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Phosphor Bronze
Contact Finish Thickness - Post	3.00µin (0.076µm)
Base Product Number	ESQ-126
Standard Package	8
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
California Prop 65	Warning Information
Win Source Part Number	1352130-ESQ-126-49-G-D
Ultra Librarian 3D Model	Ultra Librarian ESQ-126-49-G-D CAD Model

Alternative Products

Description

The ESQ series rectangular connector header is an ideal solution for electronic devices that require a reliable and secure connection.

Positions: 52
Type: Elevated Socket
Contact Type: Forked
Positions Loaded: All
Rows: Two
Termination: Solder
Fastening Type: Push-Pull
Contact Material: Phosphor Bronze
Voltage Rating: 550VAC
Ingress Protection: Not Specified
Material Flammability Rating: UL94 V-0
REACH: Not Affected
ECCN: EAR99
HTSUS: 8536.69.4040
Manufacturer: Samtec Inc.
