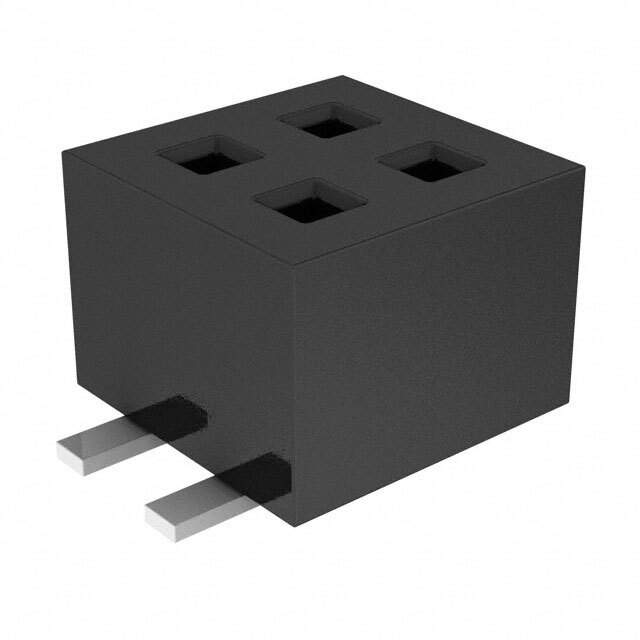

The CLP (102) 02-S-D-BE female sockets is a rectangular connector that has 4 positions with a receptacle, bottom entry connector type. The manufacturer is Samtec Inc.

• Number of Positions: 4
• Connector Type: Receptacle, Bottom Entry
• Contact Type: Female Socket
• Positions Loaded: All positions loaded
• Number of Rows: 2
• Termination: Solder
• Package: Bag
• Contact Material: Phosphor Bronze
• Voltage Rating: 240VAC, 330VDC
• Standard Package: 1,000
• Insulation Material: Liquid Crystal Polymer (LCP)
• Style: Board to Board
• Pitch - Mating: 0.050" (1.27mm)
• Contact Finish - Mating: Gold
• Contact Finish Thickness - Mating: 30.0µin (0.76µm)
• Contact Finish - Post: Tin
• Insulation Color: Black
• Mounting Type: Surface Mount
• Row Spacing - Mating: 0.050" (1.27mm)
• MSL Level: 1 (Unlimited)
• HTSUS: 8536.69.4040
• Base Product Number: CLP-102
• California Prop 65 Warning: Information Included
