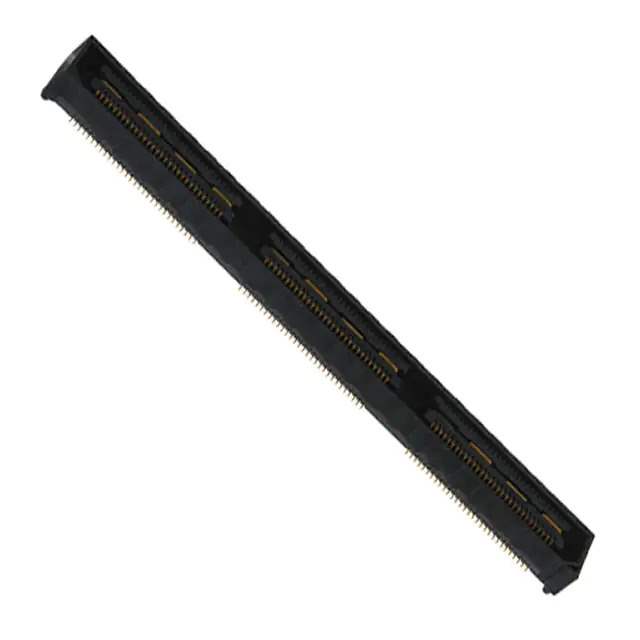

QSH-090-01-L-D-A-K Real Image
Same model may have multiple batches, images only for reference.

QSH-090-01-L-D-A-K

Part No QSH-090-01-L-D-A-K
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description CONN RCPT 180POS SMD GOLD
Datasheet
QSH-090-01-L-D-A-K Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Samtec Inc.
Series Q Strip® QSH
Package Tray
Product Status Active
Connector Type Receptacle, Center Strip Contacts
Number of Positions 180
Pitch 0.020" (0.50mm)
Number of Rows 2
Mounting Type Surface Mount
Features Board Guide, Ground Bus (Plane), Pick and Place
Contact Finish Gold
Contact Finish Thickness 10.0µin (0.25µm)
Mated Stacking Heights 5mm, 8mm, 11mm, 14mm, 16mm, 19mm, 25mm
Height Above Board 0.128" (3.25mm)
Base Product Number QSH-090
Standard Package 48 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
California Prop 65 Warning Information
Win Source Part Number 847333-QSH-090-01-L-D-A-K
Ultra Librarian 3D Model Ultra Librarian QSH-090-01-L-D-A-K CAD Model

Description

The Q Strip® QSH series from Samtec Inc. offers a reliable and high-performance solution for board-to-board connections. With a total of 180 positions and a pitch of 0.020" (0.50mm), this connector array is suitable for a wide range of applications.

  • Positions: 180
  • Pitch: 0.020" (0.50mm)
  • Connector Type: Receptacle
  • Contacts: Center strip
  • Contact Finish: Gold
  • Features: Board guides and ground bus
  • Mounting: Surface mountable
  • Height: 0.128" (3.25mm)
  • Stacking Heights: 5mm to 25mm
  • Packaging: Trays
  • Standard Package: 48 pcs
