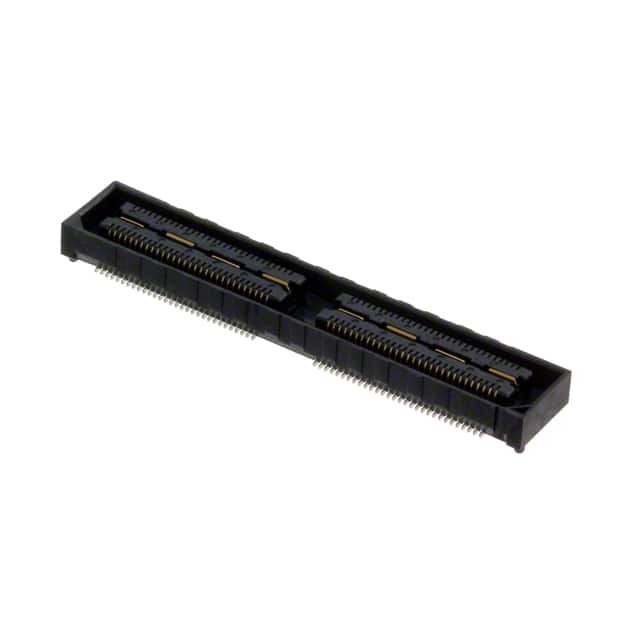

QSH-060-01-L-D-A-K-TR

Name: QSH-060-01-L-D-A-K-TR
Brand: Samtec Inc.
SKU: 847399
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	QSH-060-01-L-D-A-K-TR
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN RCPT 120POS SMD GOLD / 120 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
Datasheet	QSH-060-01-L-D-A-K-TR Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	Samtec Inc.
Series	Q Strip® QSH
Package	Tape & Reel
Product Status	Active
Connector Type	Receptacle, Center Strip Contacts
Number of Positions	120
Pitch	0.020" (0.50mm)
Number of Rows	2
Mounting Type	Surface Mount
Features	Board Guide, Ground Bus (Plane), Pick and Place
Contact Finish	Gold
Contact Finish Thickness	10.0µin (0.25µm)
Mated Stacking Heights	5mm, 8mm, 11mm, 14mm, 16mm, 19mm, 25mm
Height Above Board	0.128" (3.25mm)
Base Product Number	QSH-060
Standard Package	500 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
California Prop 65	Warning Information
Win Source Part Number	847399-QSH-060-01-L-D-A-K-TR
Ultra Librarian 3D Model	Ultra Librarian QSH-060-01-L-D-A-K-TR CAD Model

Alternative Products

Description

The QSH-060-01-L-D-A-K-TR is a 120-position rectangular connector from Samtec Inc.

Series: Q Strip® QSH
Type: Receptacle
Number of Positions: 120
Pitch: 0.020" (0.50mm)
Number of Rows: 2
Mounting Type: Surface Mount
Height Above Board: 0.128" (3.25mm)
Contact Finish: Gold
Contact Finish Thickness: 10.0µin (0.25µm)
Packaging: Tape & Reel (TR)
Standard Package: 500 pcs
Mated Stacking Heights: Available
Application: Board to Board or Mezzanine
Features: Center Strip
Flammability Rating: UL94 V-0
Operating Temperature: -55°C ~ 125°C
Voltage Rating: 275VAC
Product Status: Active
