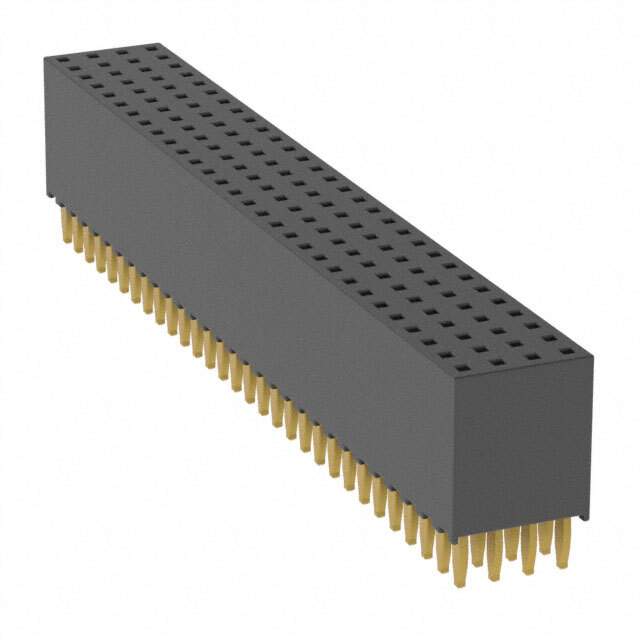

Same model may have multiple batches, images only for reference.

PTHF-130-03-M-Q-368

Name: PTHF-130-03-M-Q-368
Brand: Samtec Inc.
SKU: 1058232
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	PTHF-130-03-M-Q-368
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN RCPT 120POS 0.079 GOLD PCB / 120 Position Receptacle Connector 0.079" (2.00mm) Through Hole Gold
Datasheet	PTHF-130-03-M-Q-368 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	PTHF
Package	Tube
Connector Type	Receptacle
Contact Type	Forked
Style	Board to Board
Number of Positions	120
Number of Positions Loaded	All
Pitch - Mating	0.079" (2.00mm)
Number of Rows	4
Row Spacing - Mating	0.079" (2.00mm)
Mounting Type	Through Hole
Termination	Press-Fit, Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	20.0µin (0.51µm)
Insulation Color	Black
Insulation Height	0.368" (9.35mm)
Contact Length - Post	0.482" (12.24mm)
Temperature Range - Operating	-55°C ~ 125°C
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Phosphor Bronze
Base Product Number	PTHF-130
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	SAM10631,PTHF-130-03-M-Q-368-ND
Standard Package	1
Win Source Part Number	1058232-PTHF-130-03-M-Q-368
Ultra Librarian 3D Model	Ultra Librarian PTHF-130-03-M-Q-368 CAD Model

Alternative Products

Description

The Samtec Inc. PTHF-130 is a rectangular connector in the Connectors, Interconnects category.

Pitch: 0.079" (2.00mm)
Contact Length: 0.482" (12.24mm)
Contact Type: Forked
Contact Material: Phosphor Bronze
Contact Plating: Gold
Insulation Material: Liquid Crystal Polymer (LCP)
Insulation Height: 0.368" (9.35mm)
Application: Board to Board
