Same model may have multiple batches, images only for reference.

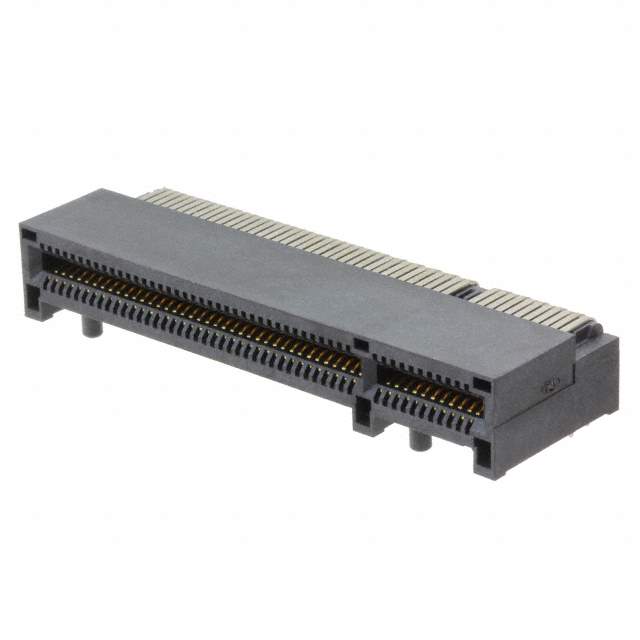

PCIE-098-02-F-D-RA Real Image
Same model may have multiple batches, images only for reference.

PCIE-098-02-F-D-RA

Part No PCIE-098-02-F-D-RA
Manufacturer Samtec Inc.
Catalog Card Edge Connectors - Edgeboard Connectors
Description CONN PCI EXP FMALE 98POS 0.039
Datasheet
PCIE-098-02-F-D-RA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 8 Weeks
Features 98 Position Female Connector PCI Express™ Gold 0.039" (1.00mm) Black
Manufacturer Samtec Inc.
Series PCI Express® (PCIe)
Package Tube
Operating Temperature Range -55°C ~ 125°C
Mounting Through Hole, Right Angle
Family Name PCIE-098
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Quantity per package 10
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 888764-PCIE-098-02-F-D-RA
Ultra Librarian 3D Model Ultra Librarian PCIE-098-02-F-D-RA CAD Model

Description

The Samtec Inc. PCI Express™ (PCIe) is a 98 position female connector that operates in a temperature range of -55°C to 125°C. The PCI Express™ (PCIe) is a 98 position female connector that operates in a temperature range of -55°C to 125°C.

  • Positions: 98
  • Gender: Female
  • Temperature Range: -55°C to 125°C
  • Plating: Gold
  • Color: Black
  • Package: Tube
  • Mounting: Through Hole, Right Angle
  • Family: PCIE-098
  • Quantity per Package: 10
  • MSL Level: 1 (Unlimited)
  • RoHS: Compliant
