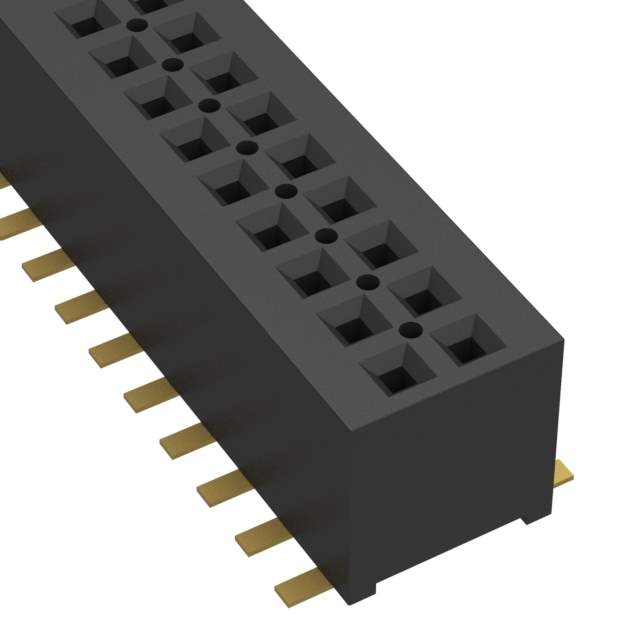

Same model may have multiple batches, images only for reference.

MLE-167-01-G-DV

Name: MLE-167-01-G-DV
Brand: Samtec Inc.
SKU: 1140243
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	MLE-167-01-G-DV
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN RCPT 134POS 0.039 GOLD SMD / 134 Position Receptacle Connector 0.039" (1.00mm) Surface Mount Gold
Datasheet	MLE-167-01-G-DV Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	Tiger Eye™ MLE
Package	Tube
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board
Number of Positions	134
Number of Positions Loaded	All
Pitch - Mating	0.039" (1.00mm)
Number of Rows	2
Row Spacing - Mating	0.039" (1.00mm)
Mounting	SMD (SMT)
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Insulation Color	Black
Insulation Height	0.130" (3.30mm)
Temperature Range - Operating	-55°C ~ 125°C
Current Rating (Amps)	2.9A per Contact
Voltage Rating	310VAC
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Beryllium Copper
Base Product Number	MLE-167
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	SAM1132-67
Standard Package	1
Win Source Part Number	1140243-MLE-167-01-G-DV
Ultra Librarian 3D Model	Ultra Librarian MLE-167-01-G-DV CAD Model

Description

The Samtec Inc. Tiger Eye™ MLE series connector is a receptacle type female socket with 134 positions.

Connector Type: Receptacle
Positions: 134
Rows: Two
Voltage Rating: 310VAC
Current Rating: 2.9A per contact
Contact Material: Beryllium Copper
Contact Finish: Gold (10.0µin)
Mounting Type: Solder
Fastening Type: Push-Pull
Packaging: Tube
Category: Rectangular Connectors - Headers, Receptacles, Female Sockets
REACH: Unaffected
ECCN: EAR99
Temperature Range: -55°C ~ 125°C
Mounting Style: Board to Board
Insulation Material: Liquid Crystal Polymer (LCP)
Insulation Color: Black
