Same model may have multiple batches, images only for reference.

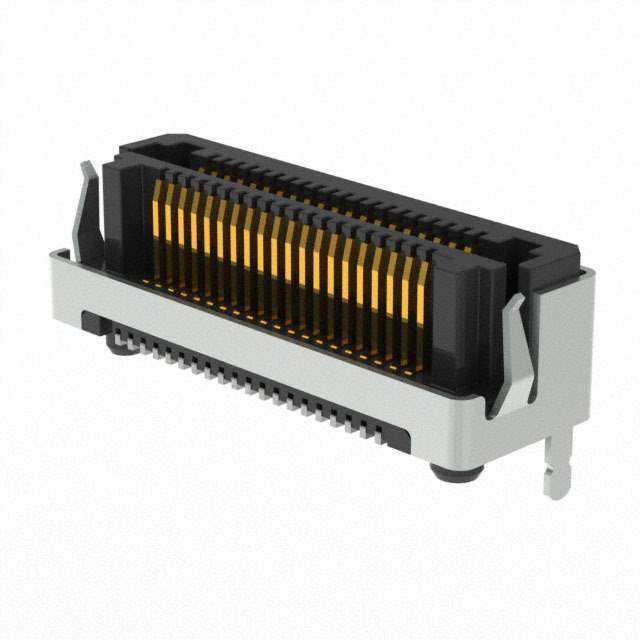

LSHM-120-03.0-L-DV-A-S-K-TR Samtec Inc.
Same model may have multiple batches, images only for reference.

LSHM-120-03.0-L-DV-A-S-K-TR

Part No LSHM-120-03.0-L-DV-A-S-K-TR
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description CONN SELF-MATE 40POS SMD GOLD
Datasheet
LSHM-120-03.0-L-DV-A-S-K-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1309826-LSHM-120-03.0-L-DV-A-S-K-TR
Category Connectors, Interconnects> Rectangular Connectors >Arrays, Edge Type, Mezzanine (Board to Board)
Manufacturer Samtec Inc.
Packaging Tape & Reel (TR) Cut Tape (CT)
Part Status Active
Connector Type Self Mating, Non-Gendered, Hermaphroditic
Number of Positions 40
Pitch 0.020" (0.50mm)
Number of Rows 2
Mounting Type Surface Mount
Features Board Guide, Pick and Place, Shielded
Ultra Librarian 3D Model Ultra Librarian LSHM-120-03.0-L-DV-A-S-K-TR CAD Model

Description

40 Position Connector Self Mating, Non-Gendered, Hermaphroditic Surface Mount Gold
