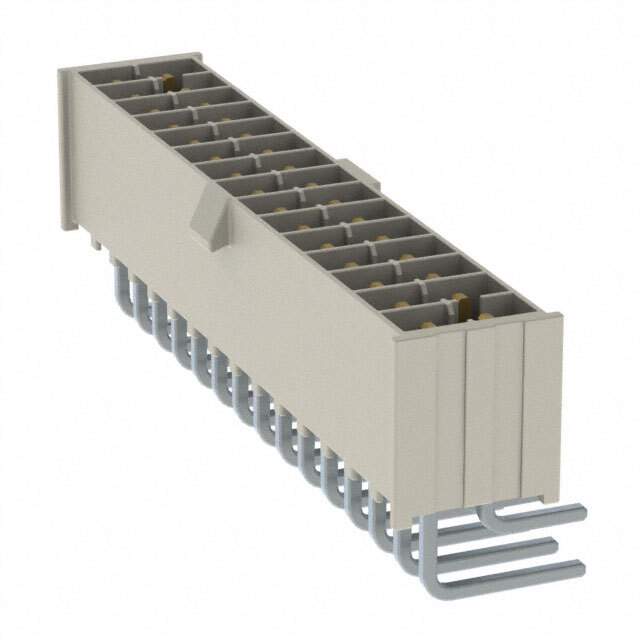

IPL1-115-01-L-D-RA-K

Name: IPL1-115-01-L-D-RA-K
Brand: Samtec Inc.
SKU: 1033013
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	IPL1-115-01-L-D-RA-K
Manufacturer	Samtec Inc.
Catalog	Circular Connectors - Housings
Description	CONN HEADER R/A 30POS 2.54MM / Connector Header Through Hole, Right Angle 30 position 0.100" (2.54mm)
Datasheet	IPL1-115-01-L-D-RA-K Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	Samtec Inc.
Series	Mini Mate® IPL1
Package	Tube
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	30
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole, Right Angle
Termination	Solder
Fastening Type	Locking Ramp
Contact Length - Mating	0.215" (5.46mm)
Contact Length - Post	0.085" (2.16mm)
Insulation Height	0.290" (7.37mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Natural
Voltage Rating	675VAC, 954VDC
Base Product Number	IPL1-115
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	SAM9611
Standard Package	14
Win Source Part Number	1033013-IPL1-115-01-L-D-RA-K
Ultra Librarian 3D Model	Ultra Librarian IPL1-115-01-L-D-RA-K CAD Model

Alternative Products

Description

The Mini Mate® IPL1 series header connector from Samtec Inc. is an ideal choice for rectangular connectors in the headers, male pins category.

Series: Mini Mate® IPL1
Category: headers, male pins
Positions: 30
Contact Type: male pin
Voltage Rating: 675VAC, 954VDC
Contact Material: phosphor bronze
Material Flammability Rating: UL94 V-0
Connection: board to cable/wire
Pitch-Mating: 0.100" (2.54mm)
Temperature Range: -55°C ~ 125°C
Packaging: tube
RoHS Compliant: Yes
