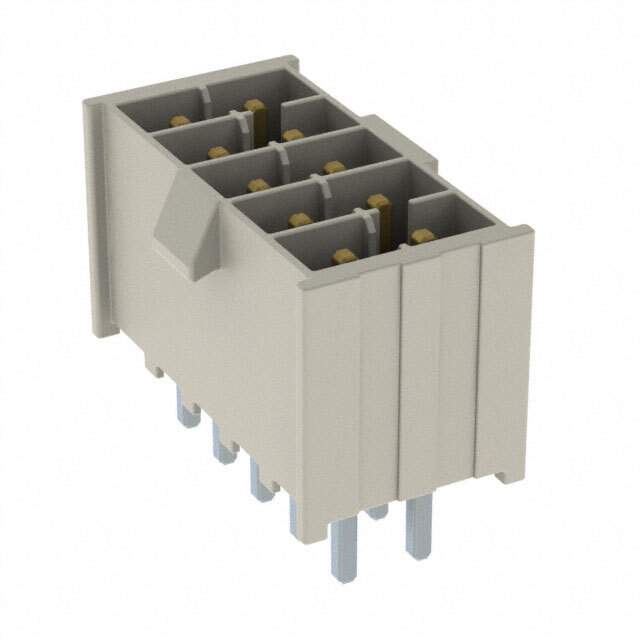

IPL1-105-01-F-D-K Real Image1 IPL1-105-01-F-D-K Real Image2
Same model may have multiple batches, images only for reference.
IPL1-105-01-F-D-K Real Image1 IPL1-105-01-F-D-K Real Image2
IPL1-105-01-F-D-K Real Image1 IPL1-105-01-F-D-K Real Image2
Same model may have multiple batches, images only for reference.

IPL1-105-01-F-D-K

Part No IPL1-105-01-F-D-K
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description CONN HEADER VERT 10POS 2.54MM / Connector Header Through Hole 10 position 0.100" (2.54mm)
Datasheet
IPL1-105-01-F-D-K Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Mfr Samtec Inc.
Series Mini Mate® IPL1
Package Tube
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 10
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Locking Ramp
Contact Length - Mating 0.215" (5.46mm)
Contact Length - Post 0.120" (3.05mm)
Overall Contact Length -
Insulation Height 0.320" (8.13mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 3.00µin (0.076µm)
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Liquid Crystal Polymer (LCP)
Features -
Temperature Range - Operating -55°C ~ 125°C
Ingress Protection -
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) -
Voltage Rating 675VAC, 954VDC
Mated Stacking Heights -
Contact Finish Thickness - Post -
Applications -
Base Product Number IPL1-105
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
California Prop 65 Warning Information
Standard Package 40 pcs
Win Source Part Number 1382315-IPL1-105-01-F-D-K
Ultra Librarian 3D Model Ultra Librarian IPL1-105-01-F-D-K CAD Model

Description

The IPL1-105-01-F-D-K is a rectangular connector header designed for board to cable/wire applications.

  • Positions: 10
  • Contact Gender: Male Pin
  • Number of Rows: 2
  • Termination: Solder
  • Fastening Type: Locking Ramp
  • Package Type: Tube
  • Pieces per Package: 40
  • Manufacturer: Samtec Inc.
  • Series: Mini Mate IPL1
  • Contact Material: Phosphor Bronze
  • Voltage Rating: 675VAC and 954VDC
  • ECCN: EAR99
  • HTSUS: 8536.69.4040
  • Moisture Sensitivity Level (MSL): 1
