Same model may have multiple batches, images only for reference.

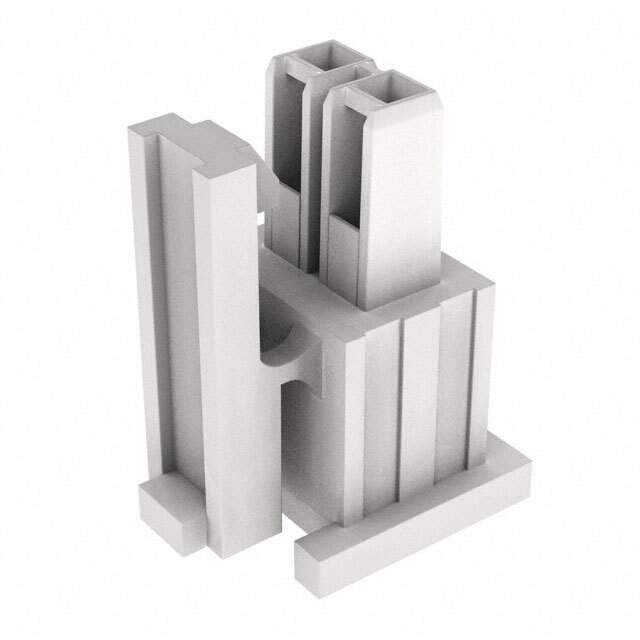

IPD1-02-S-K Real Image
Same model may have multiple batches, images only for reference.

IPD1-02-S-K

Part No IPD1-02-S-K
Manufacturer Samtec Inc.
Catalog Circular Connectors - Housings
Description CONN RECEPT .100" 2POS KEYED / 2 Rectangular Connectors - Housings Receptacle White 0.100" (2.54mm)
Datasheet
IPD1-02-S-K Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Housings
Mfr Samtec Inc.
Series Mini Mate® IPD1
Package Bulk
Connector Type Receptacle
Contact Type Female Socket
Number of Positions 2
Pitch 0.100" (2.54mm)
Number of Rows 1
Mounting Type Free Hanging (In-Line)
Contact Termination Crimp
Fastening Type Latch Lock
Color White
Features Polarizing Key
Note Contacts Not Included
Base Product Number IPD1-02
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8538.90.6000
Other Names SAM8819,IPD1-02-S-K-ND,Q7165861S
Standard Package 1
Win Source Part Number 1010866-IPD1-02-S-K
Ultra Librarian 3D Model Ultra Librarian IPD1-02-S-K CAD Model

Description

The Mini Mate IPD1 series is a range of rectangular connectors designed for use in various electronic devices.

  • Type: Receptacle
  • Features: Polarizing key
  • Contact Gender: Accommodates female socket contacts
  • Positions: 2
  • Pitch: 0.100" (2.54mm)
  • Color: White
  • Mounting Type: Free hanging (in-line)
  • Fastening Type: Latch lock
  • Packaging: Bulk
  • Contacts: Not Included
  • Manufacturer: Samtec Inc.
  • ECCN: EAR99
