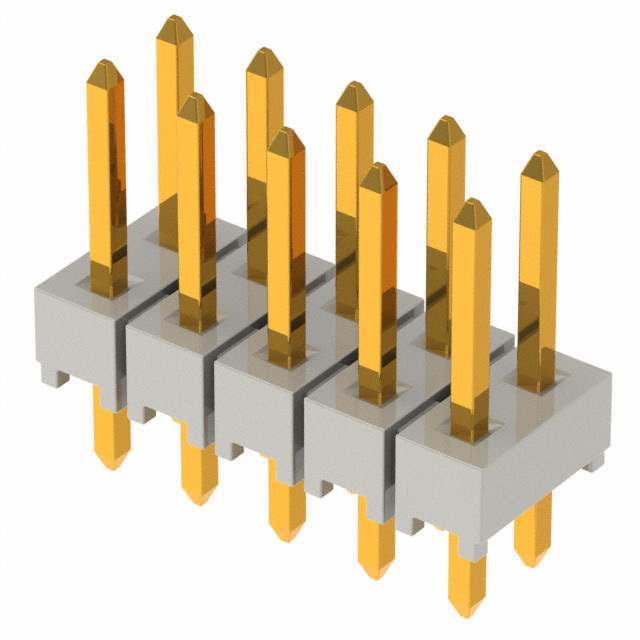

HTSW-105-07-G-D Samtec Inc.
Same model may have multiple batches, images only for reference.

HTSW-105-07-G-D

Part No HTSW-105-07-G-D
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description CONN HEADER VERT 10POS 2.54MM
Datasheet
HTSW-105-07-G-D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1209022-HTSW-105-07-G-D
Manufacturer Samtec Inc.
Category Connectors, Interconnects-Rectangular Connectors-Headers, Male Pins
Package Bag
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 10
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Ultra Librarian 3D Model Ultra Librarian HTSW-105-07-G-D CAD Model

Description

Connector Header Through Hole 10 position 0.100" (2.54mm)
