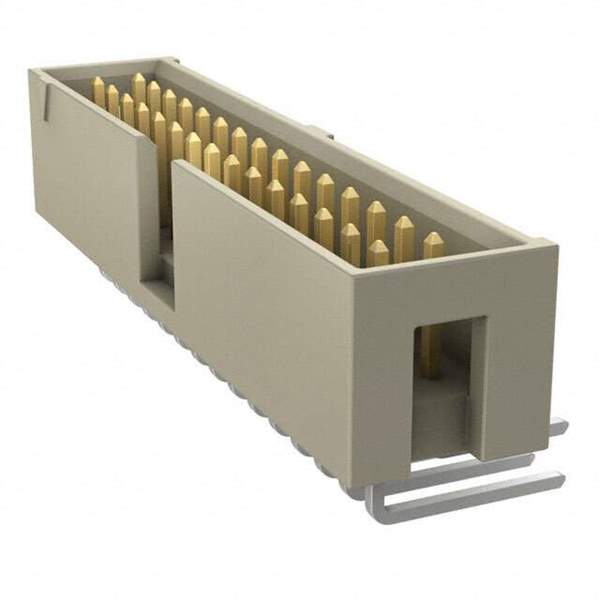

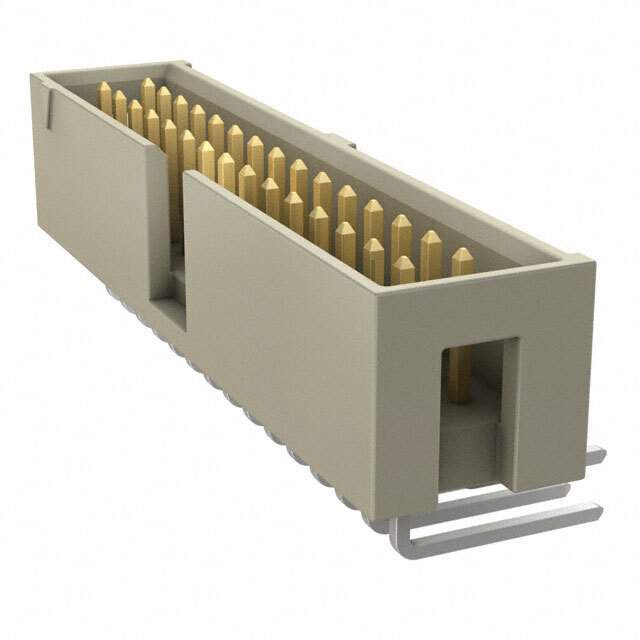

HTST-115-04-L-D-RA

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	HTST-115-04-L-D-RA
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER R/A 30POS 2.54MM / Connector Header Through Hole, Right Angle 30 position 0.100" (2.54mm)
Datasheet	HTST-115-04-L-D-RA Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	Samtec Inc.
Series	Flex Stack, HTST
Package	Tube
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	30
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole, Right Angle
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.250" (6.35mm)
Contact Length - Post	0.130" (3.30mm)
Insulation Height	0.365" (9.27mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP)
Features	Keying Slot
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Natural
Current Rating (Amps)	3.4A per Contact
Base Product Number	HTST-115
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	Q8363317
Standard Package	12
Win Source Part Number	1191386-HTST-115-04-L-D-RA
Ultra Librarian 3D Model	Ultra Librarian HTST-115-04-L-D-RA CAD Model

Alternative Products

Description

The 1191386-HTST-115-04-L-D-RA is a 30-position male pin header connector from the Flex Stack HTST series.

Number of Positions: 30
Keying Slot: Yes
Style: Board-to-Cable/Wire
Mounting Type: Through Hole, Right Angle
Contact Material: Phosphor Bronze
Mating Finish: Gold
Post Finish: Tin
Pitch: 0.100" (2.54mm)
Mating Contact Length: 0.250" (6.35mm)
Post Length: 0.130" (3.30mm)
Insulation Material: Liquid Crystal Polymer (LCP)
Insulation Height: 0.365" (9.27mm)
Temperature Range: -55°C to 125°C
Current Rating: 3.4A per contact
Packaging: Tube
Flammability Rating: UL94 V-0
Fastening Type: Push-Pull
Design: Shrouded 4-Wall
