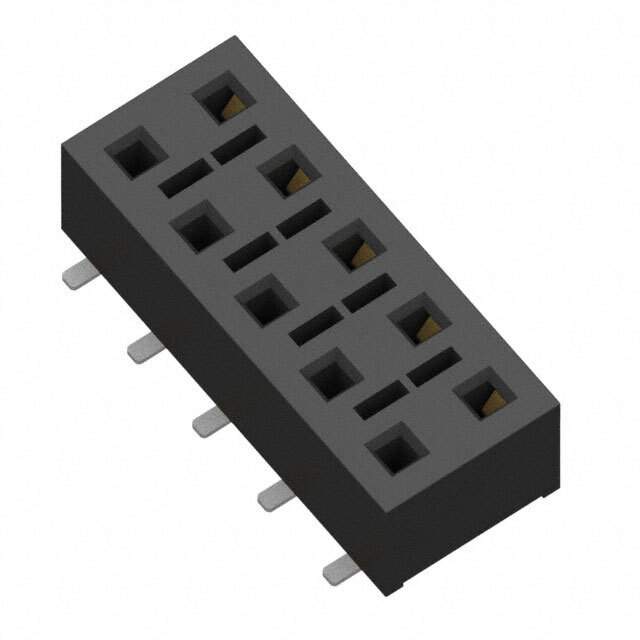

Same model may have multiple batches, images only for reference.

HLE-105-02-S-DV-K-TR

Name: HLE-105-02-S-DV-K-TR
Brand: Samtec Inc.
SKU: 458627
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	HLE-105-02-S-DV-K-TR
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN RCPT 10POS .100" SMD GLD
Datasheet	HLE-105-02-S-DV-K-TR Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Samtec Inc.
Packaging	Reel - TR
Status	Active
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board
Number of Positions	10
Number of Positions Loaded	All
Pitch - Mating	2.54mm
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Mounting	SMD (SMT)
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30μin (0.76μm)
Insulation Color	Black
Insulation Height	0.144" (3.66mm)
Temperature Range - Operating	-55°C to 125°C
Contact Finish - Post	Tin
Features	Pick and Place
Current Rating	4.1A per Contact
Voltage Rating	400VAC
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Win Source Part Number	1043529-HLE-105-02-S-DV-K-TR
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian HLE-105-02-S-DV-K-TR CAD Model

Alternative Products

Description

This electronic component is a connector that has a Win Source Part Number: 1043529-HLE-105-02-S-DV-K-TR. Samtec Inc.

Packaging: reel - TR
Positions: 10
Feature: pick and place
Connector Type: receptacle
Contact Type: female socket
Positions Loaded: all
Fastening Type: push-pull
Voltage Rating: 400VAC
Current Rating: 4.1A per contact
Material Flammability Rating: -
Mounting: surface mount
Style: board to board
Pitch: 2.54mm
Mating Contact Finish: gold
Insulation Color: black
Popularity: medium
