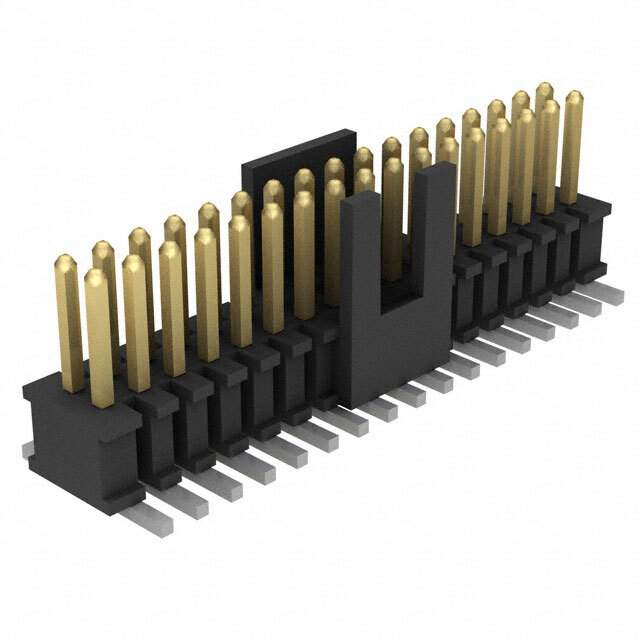

Same model may have multiple batches, images only for reference.

FTSH-117-01-F-DV-K

Name: FTSH-117-01-F-DV-K
Brand: Samtec Inc.
SKU: 1015350
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	FTSH-117-01-F-DV-K
Manufacturer	Samtec Inc.
Catalog	Circular Connectors - Housings
Description	CONN HEADER SMD 34POS 1.27MM / Connector Header Surface Mount 34 position 0.050" (1.27mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	Samtec Inc.
Series	FTSH
Package	Tube
Connector Type	Header, Cuttable
Contact Type	Male Pin
Pitch - Mating	0.050" (1.27mm)
Number of Positions	34
Number of Rows	2
Row Spacing - Mating	0.050" (1.27mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Unshrouded
Mounting	SMD (SMT)
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.120" (3.05mm)
Insulation Height	0.099" (2.51mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	3.00µin (0.076µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP)
Features	Keying Shroud
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	3.4A per Contact
Base Product Number	FTSH-117
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	FTSH-117-01-F-DV-K-ND,SAM8912
Standard Package	27
Win Source Part Number	1015350-FTSH-117-01-F-DV-K
Ultra Librarian 3D Model	Ultra Librarian FTSH-117-01-F-DV-K CAD Model

Alternative Products

Description

The FTSH series rectangular connector is a header, cuttable type connector with a keying shroud feature.

Positions: 34
Contact Load: All Loaded
Contact Type: Male Pin
Termination: Solder
Insulation Material: Liquid Crystal Polymer (LCP)
Color: Black
Voltage Rating: -
Temperature Range: -55°C to 125°C
Style: Board to Board or Cable
Pitch: 0.050" (1.27mm)
Mating Contact Finish: Gold
Mating Contact Finish Thickness: 3.00µin (0.076µm)
Post Contact Finish: Tin
Insulation Height: 0.099" (2.51mm)
Flammability Rating: UL94 V-0
Manufacturer: Samtec Inc.
Series: FTSH-117
