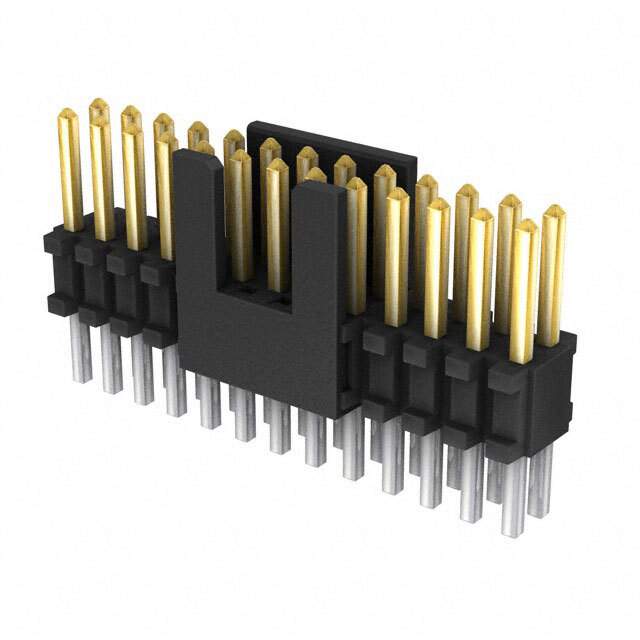

FTSH-113-01-L-D-K Real Image
Same model may have multiple batches, images only for reference.

FTSH-113-01-L-D-K

Part No FTSH-113-01-L-D-K
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description CONN HEADER VERT 26POS 1.27MM / Connector Header Through Hole 26 position 0.050" (1.27mm)
Datasheet
FTSH-113-01-L-D-K Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr Samtec Inc.
Series FTSH
Package Tube
Connector Type Header, Cuttable
Contact Type Male Pin
Pitch - Mating 0.050" (1.27mm)
Number of Positions 26
Number of Rows 2
Row Spacing - Mating 0.050" (1.27mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Unshrouded
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.120" (3.05mm)
Contact Length - Post 0.090" (2.29mm)
Overall Contact Length 0.309" (7.86mm)
Insulation Height 0.099" (2.51mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 10.0µin (0.25µm)
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Liquid Crystal Polymer (LCP)
Features Keying Shroud
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 3.4A per Contact
Base Product Number FTSH-113
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names SAM8804,FTSH-113-01-L-D-K-ND
Standard Package 1
Win Source Part Number 992364-FTSH-113-01-L-D-K
Ultra Librarian 3D Model Ultra Librarian FTSH-113-01-L-D-K CAD Model

Description

The FTSH series header connector is a rectangular connector used for connecting cables or wires.

  • Series: FTSH
  • Type: Header Connector
  • Shape: Rectangular
  • Description: Used for connecting cables or wires.
  • Number of Rows: 2
  • Number of Positions: 26
  • Pin Gender: Male
  • Contact Material: Phosphor Bronze
  • Fastening Type: Push-Pull
  • Mounting Type: Surface Mount, Through Hole
  • Compatibility: Board-to-Board or Cable Connections
  • Pitch: 0.050" (1.27mm)
  • Contact Finish: Gold
  • Insulation Material: Liquid Crystal Polymer (LCP)
  • Insulation Color: Black
  • Packaging: Tube
  • Operating Temperature: -55°C to 125°C
  • Current Rating: 3.4A per contact
