Same model may have multiple batches, images only for reference.

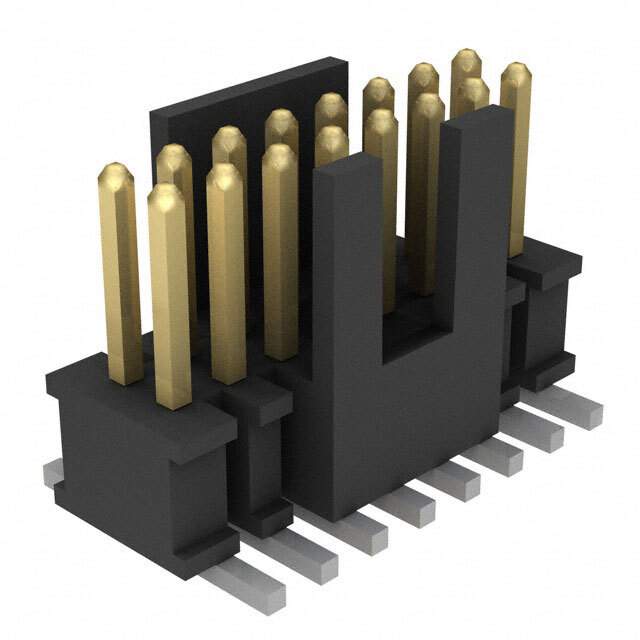

FTSH-108-01-L-DV-K-P-TR Real Image
Same model may have multiple batches, images only for reference.

FTSH-108-01-L-DV-K-P-TR

Part No FTSH-108-01-L-DV-K-P-TR
Manufacturer Samtec Inc.
Catalog Circular Connectors - Housings
Description CONN HEADER SMD 16POS 1.27MM / Connector Header Surface Mount 16 position 0.050" (1.27mm)
Datasheet
FTSH-108-01-L-DV-K-P-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr Samtec Inc.
Series FTSH
Package Tape & Reel
Connector Type Header, Cuttable
Contact Type Male Pin
Pitch - Mating 0.050" (1.27mm)
Number of Positions 16
Number of Rows 2
Row Spacing - Mating 0.050" (1.27mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Unshrouded
Mounting SMD (SMT)
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.120" (3.05mm)
Insulation Height 0.099" (2.51mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 10.0µin (0.25µm)
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Liquid Crystal Polymer (LCP)
Features Keying Shroud, Pick and Place
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 3.4A per Contact
Base Product Number FTSH-108
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names SAM13173CT,SAM13173TR,FTSH-108-01-L-DV-K-P-TR-ND,SAM13173DKR,FTSH-108-01-L-DV-K-P-FR
Standard Package 500
Win Source Part Number 1023587-FTSH-108-01-L-DV-K-P-TR
Ultra Librarian 3D Model Ultra Librarian FTSH-108-01-L-DV-K-P-TR CAD Model

Description

The FTSH-108-01-L-DV-K-P-TR is a rectangular connector header that features 16 positions and is designed for use in board-to-board or cable applications.

  • Material: Phosphor Bronze
  • Plating: Gold
  • Series: FTSH
  • Features: Keying Shroud, Pick and Place
  • Mounting: Surface-Mount Technology (SMT)
  • Packaging: Tape and Reel
  • Temperature Range: -55°C to 125°C
  • Applications: Data Communication, Industrial Equipment, High-Speed Data Transfer
