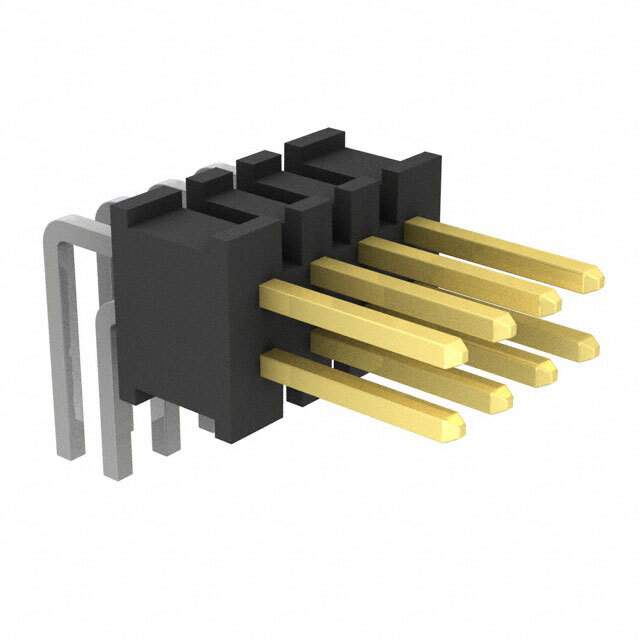

FTSH-104-02-L-D-RA Real Image
Same model may have multiple batches, images only for reference.

FTSH-104-02-L-D-RA

Part No FTSH-104-02-L-D-RA
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description CONN HEADER R/A 8POS 1.27MM / Connector Header Through Hole, Right Angle 8 position 0.050" (1.27mm)
Datasheet
FTSH-104-02-L-D-RA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr Samtec Inc.
Series FTSH
Package Bulk
Connector Type Header, Cuttable
Contact Type Male Pin
Pitch - Mating 0.050" (1.27mm)
Number of Positions 8
Number of Rows 2
Row Spacing - Mating 0.050" (1.27mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Unshrouded
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.075" (1.90mm)
Contact Length - Post 0.090" (2.29mm)
Insulation Height 0.135" (3.43mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 10.0µin (0.25µm)
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Liquid Crystal Polymer (LCP)
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 3.4A per Contact
Base Product Number FTSH-104
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.69.4040
Standard Package 1
Win Source Part Number 989785-FTSH-104-02-L-D-RA
Ultra Librarian 3D Model Ultra Librarian FTSH-104-02-L-D-RA CAD Model

Description

The Samtec Inc. electronic component is an 8 position rectangular connector with a male pin contact type and a header, cuttable connector type.

  • Manufacturer: Samtec Inc.
  • Positions: 8
  • Connector Shape: Rectangular
  • Contact Type: Male Pin
  • Connector Type: Header, Cuttable
  • Positions Loaded: All
  • Pitch-Mating: 0.050" (1.27mm)
  • Contact Finish-Mating: Gold, 10.0μin (0.25μm) Thickness
  • Contact Finish-Post: Tin
  • Mounting Type: Through Hole, Right Angle
  • Insulation Material: Liquid Crystal Polymer (LCP)
  • Current Rating: 3.4A per Contact
  • Temperature Range: -55°C ~ 125°C
