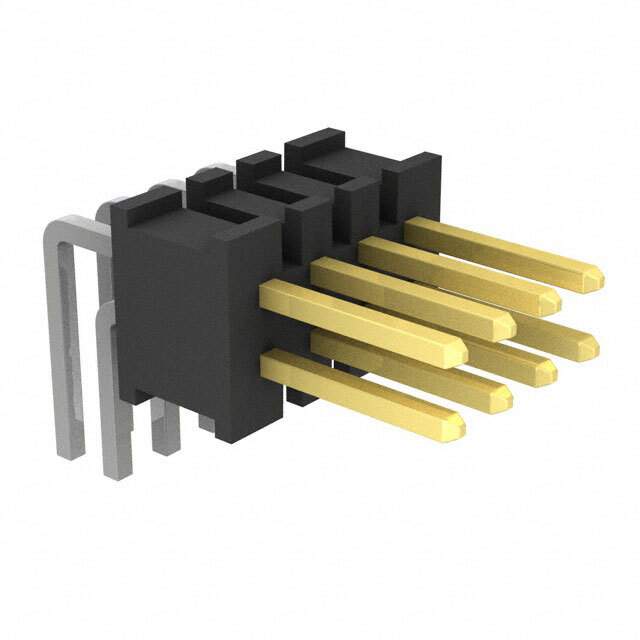

FTSH-104-01-L-D-RA Real Image
Same model may have multiple batches, images only for reference.

FTSH-104-01-L-D-RA

Part No FTSH-104-01-L-D-RA
Manufacturer Samtec Inc.
Catalog Custom Parts (E - I)
Description Conn Unshrouded Header HDR 8 POS 1.27mm Solder RA Side Entry Thru-Hole Layer
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color Black
Connector Type Male Pin
Contact Material Bronze
Contact Mating Length 3.048 mm
Contact Plating Gold
Depth 8.1 mm
Gender Male
Housing Color Black
Housing Material Polymer
Length 5.08 mm
Max Operating Temperature 125 °C
Min Operating Temperature -55 °C
Mount Through Hole
Number of Contacts 8
Number of Positions 8
Number of Rows 2
Orientation Right Angle
Pitch 1.27 mm
Radiation Hardening No
REACH SVHC No SVHC
RoHS Compliant
Row Spacing 1.27 mm
Termination Solder
Win Source Part Number 1211728-FTSH-104-01-L-D-RA
Categories Custom Parts
Manufacturer Samtec Inc.
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian FTSH-104-01-L-D-RA CAD Model

Description

The Samtec Inc. 1211728-FTSH-104-01-L-D-RA is an 8-position male pin connector with a pitch of 1.27 mm.

  • Orientation: Right-Angle
  • Mounting: Through-Hole
  • Contact Material: Bronze
  • Contact Plating: Gold
  • Housing Material: Polymer
  • Housing Color: Black
  • Contact Mating Length: 3.048 mm
  • Number of Contacts: 8
  • RoHS Compliant: Yes
  • Maximum Operating Temperature: 125 °C
