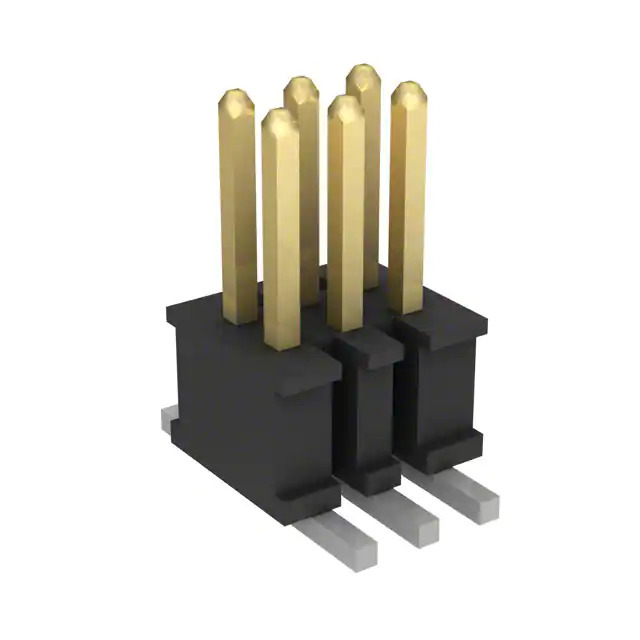

Same model may have multiple batches, images only for reference.

FTSH-103-01-L-DV

Name: FTSH-103-01-L-DV
Brand: Samtec Inc.
SKU: 1378442
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	FTSH-103-01-L-DV
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER SMD 6POS 1.27MM
Datasheet	FTSH-103-01-L-DV Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Samtec Inc.
Series	FTSH
Package	Bulk
Product Status	Active
Connector Type	Header, Cuttable
Contact Type	Male Pin
Pitch - Mating	0.050" (1.27mm)
Number of Positions	6
Number of Rows	2
Row Spacing - Mating	0.050" (1.27mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Unshrouded
Mounting Type	Surface Mount
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.120" (3.05mm)
Contact Length - Post	-
Overall Contact Length	-
Insulation Height	0.099" (2.51mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP)
Features	-
Temperature Range - Operating	-55°C ~ 125°C
Ingress Protection	-
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	3.4A per Contact
Voltage Rating	-
Mated Stacking Heights	-
Contact Finish Thickness - Post	-
Applications	-
Base Product Number	FTSH-103
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1378442-FTSH-103-01-L-DV
Ultra Librarian 3D Model	Ultra Librarian FTSH-103-01-L-DV CAD Model

Description

The FTSH-103-01-L-DV is a male pin header connector manufactured by Samtec Inc.

Series: FTSH
Packaging: Bulk
Pitch: 0.050" (1.27mm)
Number of Positions: 6
Number of Rows: 2
Row Spacing: 0.050" (1.27mm)
Mounting Type: Board to Board or Cable
Termination: Solder
Fastening Type: Push-Pull
Current Rating (Per Contact): 3.4A
Operating Temperature: -55°C ~ 125°C
Contact Length - Post: 0.120" (3.05mm)
Mated Stacking Heights: -
Height Above Board: 0.099" (2.51mm)
REACH Status: Unaffected
ECCN: EAR99
Contact Material: Phosphor Bronze
Contact Finish - Mating: Gold
Contact Finish - Post: Tin
Insulation Material: Liquid Crystal Polymer (LCP)
Flammability Rating: UL94 V-0
Connector Type: Header, Unshrouded
