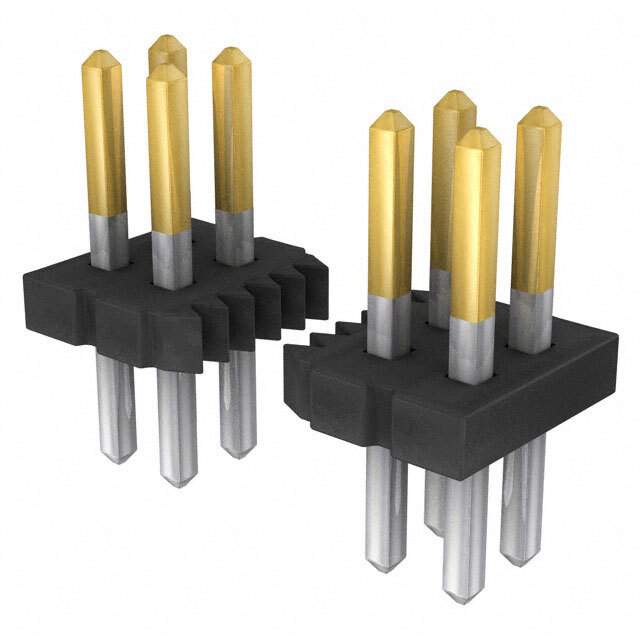

Same model may have multiple batches, images only for reference.

FTS-120-01-L-D

Name: FTS-120-01-L-D
Brand: Samtec Inc.
SKU: 1101265
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	FTS-120-01-L-D
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 40POS 1.27MM / Connector Header Through Hole 40 position 0.050" (1.27mm)
Datasheet	FTS-120-01-L-D Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	Samtec Inc.
Series	FTS
Package	Bulk
Connector Type	Header, Cuttable
Contact Type	Male Pin
Pitch - Mating	0.050" (1.27mm)
Number of Positions	40
Number of Rows	2
Row Spacing - Mating	0.050" (1.27mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Unshrouded
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.120" (3.05mm)
Contact Length - Post	0.090" (2.29mm)
Overall Contact Length	0.244" (6.20mm)
Insulation Height	0.034" (0.86mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	3.4A per Contact
Base Product Number	FTS-120
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	SAM1156-20
Standard Package	1
Win Source Part Number	1101265-FTS-120-01-L-D
Ultra Librarian 3D Model	Ultra Librarian FTS-120-01-L-D CAD Model

Description

The Samtec Inc. FTS-120 is a 40-position header connector that can be cut to size.

Positions: 40
Connector Type: Header
Gender: Male pin
Pitch: 0.050 inches
Application: Board-to-board or cable connections
Contact Material: Phosphor bronze
Contact Plating (Mating): Gold
Contact Plating (Post): Tin
Current Rating: 3.4A per contact
Temperature Range: -55°C to 125°C
