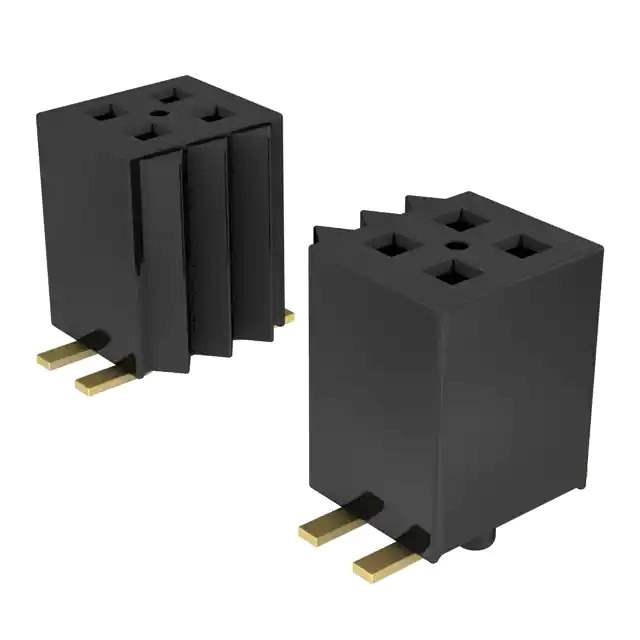

Same model may have multiple batches, images only for reference.

FLE-113-01-G-DV-A

Name: FLE-113-01-G-DV-A
Brand: Samtec Inc.
SKU: 847429
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	FLE-113-01-G-DV-A
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN RCPT 26POS 0.05 GOLD SMD
Datasheet	FLE-113-01-G-DV-A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	FLE
Package	Tube
Product Status	Active
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board or Cable
Number of Positions	26
Number of Positions Loaded	All
Pitch - Mating	0.050" (1.27mm)
Number of Rows	2
Row Spacing - Mating	0.050" (1.27mm)
Mounting Type	Surface Mount
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Insulation Color	Black
Insulation Height	0.172" (4.37mm)
Temperature Range - Operating	-55°C ~ 125°C
Contact Finish - Post	Gold
Features	Board Guide
Current Rating (Amps)	2A per Contact
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Phosphor Bronze
Contact Finish Thickness - Post	3.00µin (0.076µm)
Base Product Number	FLE-113
Standard Package	35 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8536.69.4040
California Prop 65	Warning Information
Win Source Part Number	847429-FLE-113-01-G-DV-A
Ultra Librarian 3D Model	Ultra Librarian FLE-113-01-G-DV-A CAD Model

Alternative Products

Description

The FLE series from Samtec Inc. offers a reliable solution for board-to-board or cable connections.

Positions: 26
Pitch: 0.050" (1.27mm)
Connector Type: Receptacle
Contact Gender: Female
Contact Finish: Gold
Insulation Material: Liquid Crystal Polymer (LCP)
Temperature Range: -55°C to 125°C
Product Status: Active
Package: Tube
Pieces Per Package: 35
